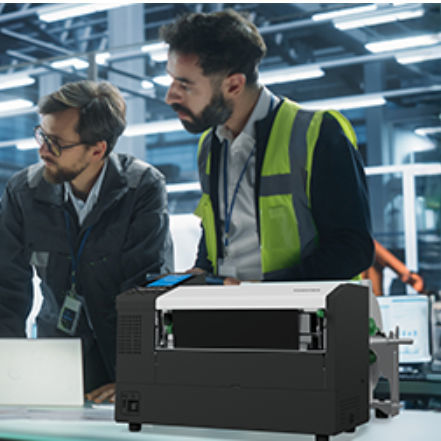

Thermal transfer printer BX820T

colorflexibleindustrial

BX820T is an extra-wide thermal transfer industrial printer. Designed for applications that demand maximum label width and full-format visibility with true 8” wide printing. Supports 8‑inch wide web labels for oversized pallet, carton and compliance labels requiring more data, graphics or multilingual content. Ideal for chemical, automotive and manufacturing environments, where GHS, drum and large component labels must remain clear and durable. Perfect for regulatory and product identification applications, where extended label width allows clear layout of barcodes, symbols and mandatory information. Furthermore, the BX820T series is equipped with a new platform ‘A-BRID’ that realizes flexible expandability, providing various solutions to adapt to the ever-changing needs of the workplace. Printhead - Flat head Print Method - Thermal transfer / Direct thermal Memory - 1 GB RAM, 8 GB ROM Dimensions (W x D x H) - 403 mm x 432 mm x 276 mm (15.86" x 17.00" x 10.86") with media holder Weight - 14.4 kg (31.74 lb) 16.2 kg (35.71 lb) with media holder User Interface - Color LCD(with LED backlight), 11Keys, 272 x 480 dots Graphic LCD Operating Temp./Humidity - 5°C to 40°C (41°F to 104°F) 25% to 85% RH (no condensation) Power Supply - AC100 to 240V, 50/60 Hz PRINT Print Speed (max) - 152.4 mm/sec (6"/sec.) Effective print Width (max.) - 216.8 mm (8.53") Effective print Length (max.) - 1,366 mm (53.78")
