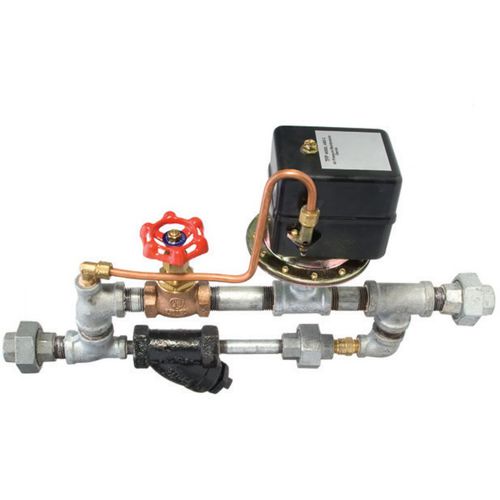

Valve maintenance kit AMD-2

The AMD-2 controls the on-off cycling of an air compressor. It is used to control the pressure in a dry pipe sprinkler system, pre-action system, or dry pilot line. UL and C-UL Listed, FM Approved, NYC Approved under MEA 206-02-E Field adjustable Used in conjunction with a small, non-tank-mounted air compressor Monitors sprinkler system or dry pilot line detection and automatically cycles the compressor to maintain system pressure within preset limits The AMD-2 is designed for applications requiring a small, non-tank mounted compressor dedicated to system pressurization. The unit monitors system pressure and automatically cycles the air compressor on and off to maintain the pressure within preset limits. This model features a pressure switch with an unloading valve that automatically bleeds the pressure between the air compressor and the AMD-2 device after the air compressor automatically shuts off. Features UL and C-UL Listed, FM Approved, NYC Approved under MEA 206-02-E Field adjustable Automatically cycles the compressor to maintain system pressure within preset limits Field-adjustable pressures: minimum cut-in (ON): 14 psi (1,0 bar) ; maximum cut-out (OFF): 60 psi (4,1 bar) Factory-set outlet pressure: 35 to 41 psi (2,4 to 2,8 bar) Used in conjunction with a small, non-tank-mounted air compressor Pressure switch with integral unloading valve automatically bleeds the pressure between the air compressor and the AMD-2 after the air compressor automatically shuts off Pressure switch differential: 6 psi (0,4 bar) Benefits Industry-Leading Warranty Johnson Controls stands behind its products with a uniquewarranty. See our Terms and Conditions for détails.
