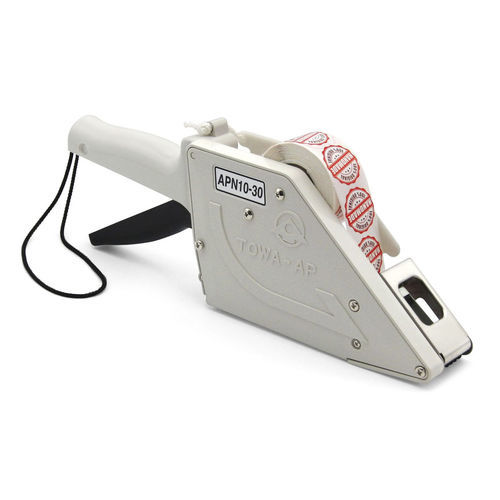

Manual labeler APN10-30

for packagingfor the food industryfor logistics

Overview
TOWA handheld label applicators enable fast, simple application of roll labels without electrical power. The patented AP series (APN and APF) supports a wide range of label sizes and is designed for minimal mechanical adjustment for easy on-site use.

APN series features

• Load roll labels and apply immediately
• Consistent one-by-one label peeling even with different sticker sizes
• Accommodates various label sizes without machine adjustments (usable up to 100 mm width)
• No power required — suitable where electrical supply is not available
• Manufactured in Japan

APF series features (advanced model)
The APF is an upgraded model with enhanced shape handling in addition to APN functions.

• Slide-type mechanical sensor enables one-touch adjustment for various shapes such as round and oval (usable up to 100 mm width)

Dedicated small-size models
Models available specifically for small labels (APN small-size variants).

Options

• Tip sponge roller: cushions delicate products (strawberries, eggs) during application
• 3-inch label core adapter: stabilizes large or high-capacity rolls to reduce label skewing

Applications and sales record
Adopted in more than 60 countries including Japan, the USA and EU countries. Commonly used in retail, logistics warehouses, courier services, food processing, fruit and vegetable production sites, and integrated with label printers.

Features / Technical specifications

• Series name: AP series (APN series, APF series)
• Supported label width: up to 100 mm (within usable range)
• Supported shapes: primarily rectangular labels (APF supports round and oval shapes)
• Power: none required (manual handheld applicator)
• Main function: patented technology enabling individual peel of various sizes without machine adjustment
• Options: tip sponge roller, 3-inch core adapter, etc.
• Manufacture: Japan (domestic production)
• Typical models shown: APN-100, APN-60, APN-30, APN10-30, APF-100, APF-60, APF-30
