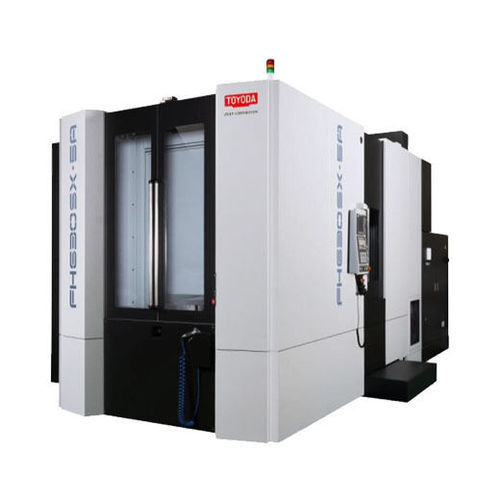

5-axis CNC machining center FH630SX-iverticalCAT5060 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- CAT50
- Number of tool stations
- 60 tools
- Other characteristics
- high-speed, high-performance, high-rigidity, high-precision, high-power
- X travel
800 mm
(31 in)- Y travel
850 mm
(33 in)- Z travel
1,050 mm
(41 in)- Rotational speed
8,000 rpm, 15,000 rpm
(50,265 rad.min-1, 94,248 rad.min-1)- Power
74 ch, 107 ch
(74 hp, 107 hp)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Work feed Z-axis
60,000 mm/min
(39 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Weight
23,000 kg
(50,706.32 lb)- Overall length
4,320 mm
(170.1 in)- Overall width
6,800 mm
(267.7 in)- Overall height
3,308 mm
(130.2 in)
Description
Developed best-in-class 5-axis machine for a 630 mm platform, the FH630SX-i 5-Axis is designed for complex part machining. It features an 8,000 RPM high-torque spindle, with the option of a 15,000 RPM high-power, multi-use spindle, and a replaceable taper design for high maintainability. The tilting spindle comes with a robust C-axis drive train and an enlarged C-axis swivel range of 230 degrees for wider components.
