5-axis CNC machining center FH1250SX
horizontalwith rotary tableCAT50

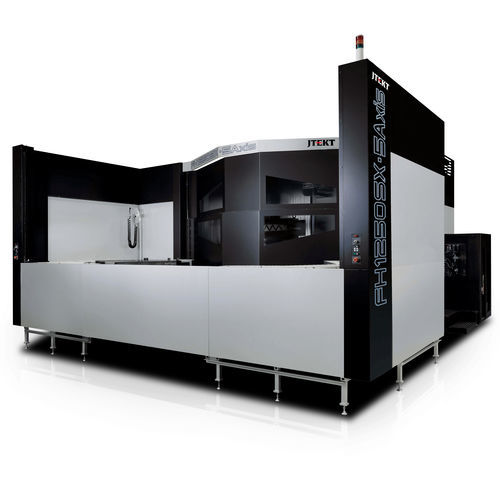

5-axis CNC machining center - FH1250SX - Toyoda Machine Works - horizontal / with rotary table / CAT50
5-axis CNC machining center - FH1250SX - Toyoda Machine Works - horizontal / with rotary table / CAT50
5-axis CNC machining center - FH1250SX - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 2
5-axis CNC machining center - FH1250SX - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 3
5-axis CNC machining center - FH1250SX - Toyoda Machine Works - horizontal / with rotary table / CAT50 - image - 4
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Structure
with rotary table
Spindle mount
CAT50
Number of tool stations
60 tools
Applications
for large workpieces
Other characteristics
high-speed, high-performance, high-rigidity, high-precision
X travel

2,200 mm
(86.61 in)

Y travel

1,600 mm
(62.99 in)

Z travel

1,850 mm
(72.83 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

50 ch
(50 hp)

Work feed X-axis

32,000 mm/min
(21 in/s)

Work feed Y-axis

32,000 mm/min
(21 in/s)

Work feed Z-axis

32,000 mm/min
(21 in/s)

Table load capacity

5,000 kg
(11,023 lb)

Weight

49,500 kg
(109,128.82 lb)

Overall length

6,320 mm
(248.8 in)

Overall width

10,000 mm
(393.7 in)

Overall height

4,250 mm
(167.3 in)

Description

The FH1250SX 5-axis is a five-axis horizontal machining center designed for complex, large part machining. It features a 15,000 RPM integral tilting spindle and rapid feed rates of 1,260 ipm (32 m/min) on the X and Y axes and 1,654 ipm (42 m/min) on the Z axis.
