Cylindrical grinding machine G5
for shaftfor large workpiecesCNC

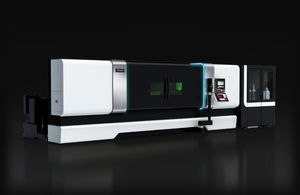

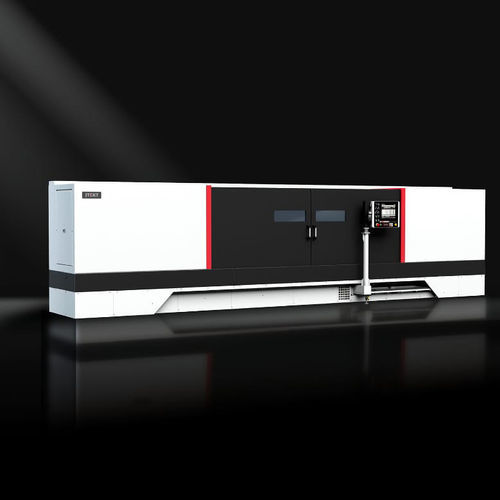

Cylindrical grinding machine - G5 - Toyoda Machine Works - for shaft / for large workpieces / CNC

Cylindrical grinding machine - G5 - Toyoda Machine Works - for shaft / for large workpieces / CNC - image - 2

Cylindrical grinding machine - G5 - Toyoda Machine Works - for shaft / for large workpieces / CNC - image - 3

Cylindrical grinding machine - G5 - Toyoda Machine Works - for shaft / for large workpieces / CNC - image - 4

Add to favorites

Compare this product

Characteristics

Type: cylindrical
Applications: for shaft, for large workpieces
Control type: CNC
Features: large-size
Other characteristics: high-precision, heavy-duty
Power: 11 kW, 15 kW
(14.96 hp, 20.39 hp)
Distance between centers: 1,000 mm, 1,600 mm, 2,500 mm, 3,200 mm, 4,000 mm
(39 in, 63 in, 98 in, 126 in, 157 in)
Grinding wheel diameter: 610 mm, 760 mm
(24 in, 30 in)
Speed: 33 m/s, 45 m/s
(108.27 ft/s, 147.64 ft/s)
Machine weight: 8,000 kg, 10,000 kg, 12,000 kg, 14,000 kg, 17,000 kg
(17,636.98 lb, 22,046.23 lb, 26,455.47 lb, 30,864.72 lb, 37,478.58 lb)

Description

Product overview
The G5 Series is a CNC cylindrical grinder designed for high-precision grinding of large workpieces. Improved load capacity and a high-rigidity structure provide stable machining accuracy. Automated machining-condition setting, automatic diameter measurement and steady-rest adjustment reduce variability from operator skill and lower operator workload. STAT BEARING®, precision hand-scraped sliding surfaces, and thermal and vibration countermeasures sustain high accuracy for large rolls and shafts over long periods.

Benefits

Automation of condition setting and measurement/adjustment reduces the burden of determining machining parameters and minimizes skill-based variability.
Automatic diameter measurement and steady-rest adjustment streamline operations and help maintain consistent machining quality.
Precision scraping of major sliding surfaces, thermal-displacement countermeasures and a low-vibration, high-rigidity bed maintain accuracy over extended periods.
Supports larger and heavier workpieces with center load capacity up to 1,500 kg (options available), high-power wheel spindle and larger wheel diameters.

Main features

Automatic diameter measurement and steady-rest adjustment
Automatic machining-condition setting via 'Easy Operation' mode
Steer-by-wire handle and slide-type control panel for operation support
Workpiece capacity up to 1,500 kg between centers (varies by model/spec)
Wheel spindle motor: 11 kW (standard) [15 kW optional]
Tailstock taper adjustment function
High-rigidity, low-vibration bed and precision hand-scraped surfaces
STAT BEARING® (fluid bearing) for reduced wear and high rigidity/damping
Full center-cover configuration, sleep-in/wake-up modes, and energy-visibility functions for safety and environmental performance

Machine specifications
Center distance (mm): 1,000 / 1,600 / 2,500 / 3,200 / 4,000
Swing over table (mm): φ560
Grinding diameter (mm): φ0–φ550
Center load weight (kg): 500 [1,000 / 1,500]
Wheel outer diameter (mm): φ610 [φ760]
Wheel surface speed (m/s): 33 [45]
Wheel spindle motor (kW): 11 [15]
Net weight (kg): 8,000 / 10,000 / 12,000 / 14,000 / 17,000
[ ] indicate optional specifications
