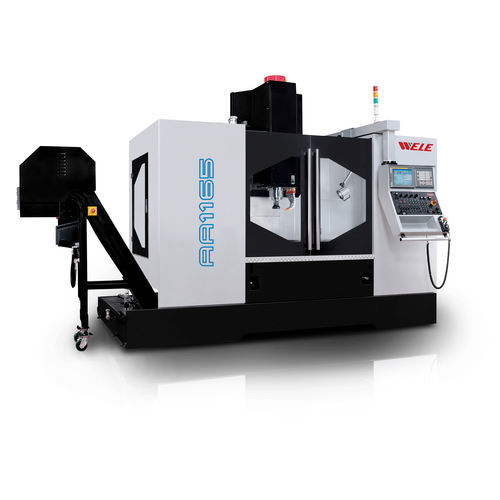

3-axis CNC machining center AA1165verticalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for aluminum
- Spindle mount
- CAT40, CAT50
- Number of tool stations
- 40 tools, 32 tools, 30 tools
- Applications
- heavy-duty
- Other characteristics
- high-speed, high-performance
- X travel
1,100 mm
(43.31 in)- Y travel
650 mm
(25.59 in)- Z travel
600 mm
(23.62 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
15 kW, 18.5 kW
(20.39 hp, 25.15 hp)- Table load capacity
1,100 kg
(2,425 lb)- Weight
7,200 kg
(15,873.28 lb)- Overall length
4,308 mm
(169.6 in)- Overall width
4,068 mm
(160.2 in)- Overall height
2,940 mm
(115.7 in)
Description
The AA1165 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
