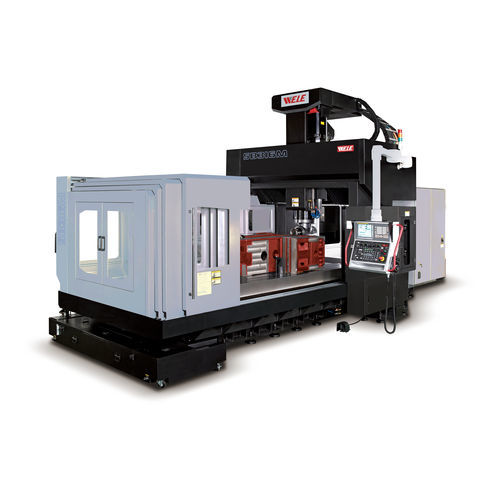

3-axis CNC machining center SB316verticalbridgeCAT50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Spindle mount
- CAT50
- Number of tool stations
- 60 tools, 32 outils, 120 tools
- Applications
- cutting
- Other characteristics
- high-productivity, high-power
- X travel
3,060 mm
(120 in)- Y travel
1,600 mm
(63 in)- Z travel
800 mm
(31 in)- Rotational speed
5,000 rpm, 6,000 rpm
(31,416 rad.min-1, 37,699 rad.min-1)- Power
22 kW, 26 kW, 30 kW
(29.91 hp, 35.35 hp, 40.79 hp)- Work feed X-axis
24,000 mm/min
(16 in/s)- Work feed Y-axis
24,000 mm/min
(16 in/s)- Work feed Z-axis
24,000 mm/min
(16 in/s)- Table load capacity
10,000 kg
(22,046 lb)- Weight
27,000 kg
(59,524.81 lb)- Overall length
8,300 mm
(326.8 in)- Overall width
4,650 mm
(183.1 in)- Overall height
4,350 mm
(171.3 in)
Description
The SB316 is fixed rail bridge machine designed for heavy cutting applications. This machine features roller guides, a hydraulic counterbalance system on the headstock, and a powerful spindle. These features allow for highly precise and accurate cuts without sacrificing speed.
The SB316YM model has extended Y-axis travel with 5-face machining capabilities to allow for the machining of complex workpieces. This machine features automatic tool changes in the vertical and horizontal orientations and offers automatic clamping of the headstock. Headstock options include 30 degree, 90 degree, extension, and manual universal.
