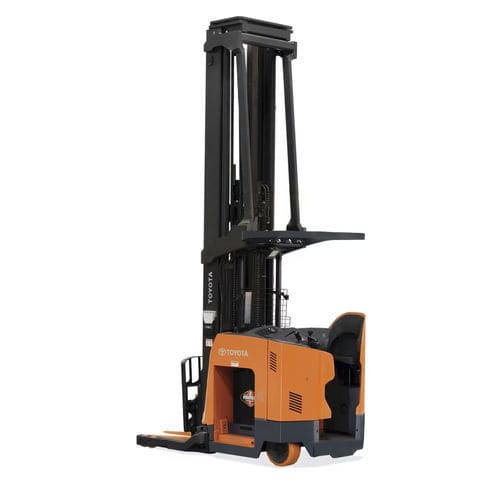

Electric reach truck RF1-HC series
stand-onfor warehousestorage

Electric reach truck - RF1-HC series - Toyota Industrial Equipment - stand-on / for warehouse / storage
Electric reach truck - RF1-HC series - Toyota Industrial Equipment - stand-on / for warehouse / storage
Electric reach truck - RF1-HC series - Toyota Industrial Equipment - stand-on / for warehouse / storage - image - 2
Electric reach truck - RF1-HC series - Toyota Industrial Equipment - stand-on / for warehouse / storage - image - 3
Electric reach truck - RF1-HC series - Toyota Industrial Equipment - stand-on / for warehouse / storage - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
stand-on
Applications
storage, for warehouse
Other characteristics
for heavy loads
Carrying capacity

3,200 lb, 4,500 lb
(1,451.5 kg, 2,041.2 kg)

Lifting height

542 in

Overall width

32 in

Load center distance

24 in

Weight without load

Min.: 9,275 lb
(4,207.1 kg)

Max.: 10,637 lb
(4,824.9 kg)

Height of mast when lowered

Min.: 184 in

Max.: 230 in

Free lift

Min.: 139 in

Max.: 187 in

Overall height with mast raised

Min.: 480 in

Max.: 580 in

Height to top of overhead guard

93.4 in

Seat height

9.3 in

Length to fork face

Min.: 65.2 in

Max.: 74.3 in

Ground clearance at center of wheelbase with load

2 in

Turning circle radius

Min.: 82.6 in

Max.: 90 in

Travel speed

Min.: 4.5 mph
(7.2 km/h)

Max.: 7.5 mph
(12.1 km/h)

Lifting speed

Min.: 460 mm/s

Max.: 850 mm/s

Lowering speed

117 mm/s

Gradeability

5 %

Rated output

7.1 ch
(7.1 hp)

Description

Your fast-paced warehouse environment gets a workout day-in and day-out. When it comes to moving and storing products, the last thing you need is limitations. Keeping up with evolving throughput and storage density demands while managing fluctuating SKU counts presents challenges for warehouse managers and operators. Toyota’s High-Capacity Reach Truck enables you to reach higher, work smarter, and be comfortably productive regardless of the assignment. For tall tasks and heavy orders, you need the Toyota High-Capacity Reach Truck. Performance Heavy on Productivity Toyota’s versatile High-Capacity Reach Truck allows you to run your operations at a new level. Need to reach high? How about a lift height of up to 45 ft. Need to lift heavy? How about a lift capacity of up to 4,500 lbs? When needing to do both, the High-Capacity Reach Truck can lift 2,150 lbs. to more than 42 feet. It all adds up to better cube utilization and versatility to store products when and where you need to. Slow- and fast-moving pallets get stored based on need and not on your equipment’s limitations. Don’t limit your efficiency. Efficiency to Keep You Moving Moving from pick to pick as quickly and efficiently as possible is the name of the game, and the Toyota High-Capacity Reach Truck delivers. Its powerfully efficient AC Drive and Lift Motors offer superior acceleration, travel, and lift/lower speeds to maximize throughput while minimizing downtime.
