TFT LCD panel PC IPPC-104V2-2L6C-11TH-17S series
LED backlightPCAP touchscreen5-wire resistive touch screen

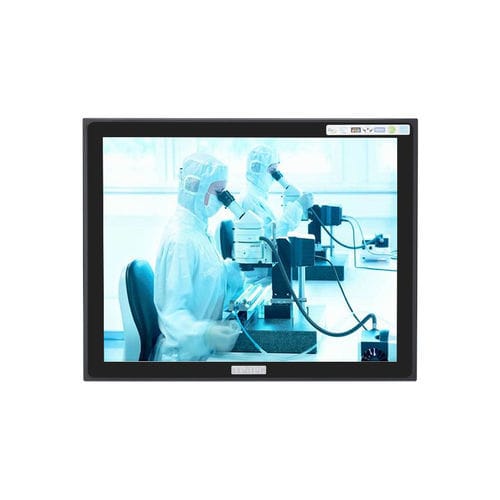

TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen - image - 2
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen - image - 3
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen - image - 4
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen - image - 5
TFT LCD panel PC - IPPC-104V2-2L6C-11TH-17S series - TP-IPC - LED backlight / PCAP touchscreen / 5-wire resistive touch screen - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, LED backlight, PCAP touchscreen, 5-wire resistive touch screen
Display size
17"
Processor
Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Intel® Core™ i3-1115G4
Resolution
1280 x 1024
Memory
DDR4 SO-DIMM, DDR4 3200 MHz
Operating system
Linux® Ubuntu™, Windows 10, Windows 8
Construction
fanless, compact, slim design
Mounting
desktop
Applications
industrial, POS
Protection level
dust-proof, shock-proof
Other characteristics
all-in-one, USB 2.0, RJ45, Ethernet
Memory size

Min.: 0 GB

Max.: 64 GB

Description

The IPPC-104V2-2L6C-11TH-17S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited. Features： ·11th Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics ·Ultra-thin design, overall thickness is under 60mm; ·Narrow bezel design bring the more compact overall size; ·Aluminum alloy cooling backshell , sealed and fanless system design, dustproof, anti-vibration and anti-interference; ·Rich I/O interface and expansion slot with 3* M.2, support SSD, WiFi+BT, 4G/5G
