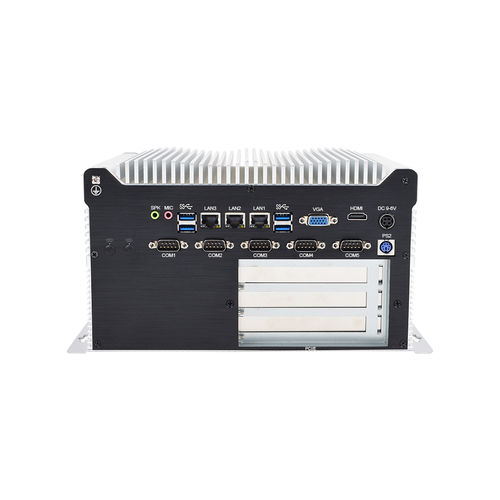

Industrial PC IBOX-602-5C3L-3PbareboneexpansionAI
Add to favorites
Compare this product
Characteristics
- Type
- expansion, barebone, AI
- Configuration
- in-vehicle, desktop
- Processor
- Intel® Core™ i5-8500, Intel® Celeron® G4900, Intel® Core™ i5-7400, Intel® Core™ i5-9400, 6th generation Intel® Core™, 7th Generation Intel® Core™, Intel® Core™ i3-9300, 8th Generation Intel® Core™, Intel® Core™ i9, Intel® Core i7 - 7700, 9th Generation Intel® Core™, Intel® Core™ i7-8700, Intel® Core™ i3-7100, Intel® Core™ i3-8100, Intel® Core™ i3-6100, Intel® Core™ i7-9700, Intel® Core™ i7-6700, Intel® Core™ i9-9900, Intel® Core™ i5-6500
- Ports
- HDMI, VGA, SO-DIMM, USB 2.0, USB 3.0, PCI, WiFi, USB, Mini PCIe, SIM card, M.2 Key E, M.2 Key M, SATA III, RAID, M.2
- Data storage
- SSD 128GB, SSD 256GB, SSD 512GB, SSD 1TB, SSD 64GB, SSD 32GB, SSD 2TB, 32 GB, 64 GB
- Operating system
- Linux, Windows 10, Windows 11, Windows 7, Windows 8, Windows embedded
- Size
- compact
- Domain
- industrial, automation, for harsh environments, network, for medical applications, electronic
- Protection level
- rugged, dust-proof, IP65, shockproof
- Other characteristics
- fanless, SSD, modular, GPU-Based
- Memory
- 32 GB
Description
The IBOX-602-5C3L-3P system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
Features：
·9th/8th/7th/6th Gen Intel® Core™ i7/i5/i3 (Skylake, Kaby Lake and Coffee Lake) with
Desktop-grade Intel® Z370 chipset, support processor up to 65W TDP;
·Up to 4 front-access 2.5" SSD trays, RAID 0, 1, 5 supported, besides that, it support working
with up two 3* PCIe/PCI slot;
·2* M.2 sockets, 1* M.2 Key M, 1* M.2 Key E for SSD and WiFi, 1* Mini PCIe slot comes with
SIM card slot support 4G LTE Module;
·IBOX-602-5C3L series is offering 4* isolated serial port supporting RS232/485 switchable by
internal jumper;
·9V to 36V DC Power Input with Surge Protection, configurable Ignition Power Control;
·Fully enclosed full aluminum alloy with fanless cooling system offering anti-interference
structure and stable system with Modular parts cable-free design for better vibration
resistance.
VIDEO
Catalogs
IBOX-602-5C3L-3P
3 Pages
