Assembly workstation Lifting-1260

inspectionfor laboratoryfor assembling/disassembling

Product Overview

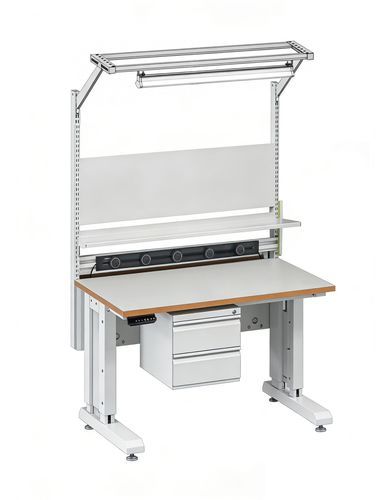

The TPS Lifting-1260 ESD workstation is an industrial electronic workbench with electric height adjustment, designed to provide electrostatic discharge protection for sensitive components in electronics manufacturing, assembly, testing and rework.
It complies with IEC 61340-5-1:2016 and provides stable point-to-point resistance across 10%–60% relative humidity, making it suitable for assembly lines, repair benches, quality control and rework stations.
The work surface measures 1200 mm × 600 mm and the working height is adjustable from 720 mm to 1060 mm to support sit‑stand operation and reduce operator fatigue.
The top is a 25 mm thick ESD-laminated HPL (RAL7035), delivering a conductive/static-dissipative surface.
The lifting structure supports a uniform static load of 200 kg and a uniform dynamic load of 130 kg.
The workstation is compatible with TPS accessories including back panels, antistatic steel shelves, suspension drawers, slant light brackets, LED lights, power rails and optional electric frames.
Grounding points are provided for wrist straps and the construction is compatible with ESD flooring.

Key Features

• IEC ESD compliance: Meets IEC 61340-5-1:2016 with stable point-to-point resistance at 10%–60% RH.
• Electric height adjustment: 720–1060 mm range for sit‑stand operation.
• ESD work surface: 25 mm HPL laminated top (RAL7035), conductive/static-dissipative.
• Load capacity: Uniform static load 200 kg; uniform dynamic load 130 kg.
• Compact footprint: 1200 × 600 mm work surface.
• Accessory compatibility: Back panels, antistatic shelves, suspension drawers, lighting and power rails.
• Grounding: Wrist strap grounding point compatible; ESD-flooring compatible construction.
• Applications: Electronics assembly, repair, QC, rework, laboratory and manufacturing stations.

Technical specifications

• Model: Lifting-1260
• Dimensions (L×D×H): 1200 × 600 × (720–1060) mm
• Work surface: 25 mm HPL ESD-laminated top (RAL7035)
• Height range: 720 mm (min) – 1060 mm (max)
• Uniform static load: 200 kg
• Uniform dynamic load: 130 kg
• Lift function: Electric
• ESD compliance: IEC 61340-5-1:2016
• Grounding: Wrist strap grounding point compatible; ESD-flooring compatible
• Accessories: Back panels, antistatic steel shelves, suspension drawers, slant light brackets, LED lights, power rails, optional electric frames
