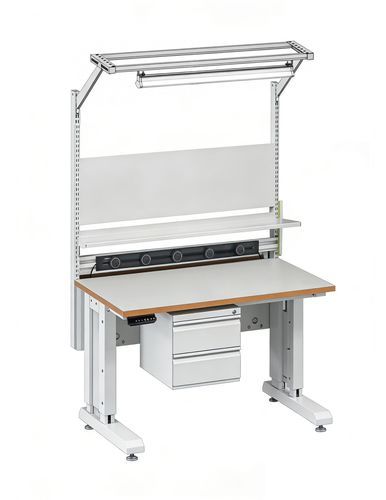

Assembly workstation Lifting-1575

inspectionfor laboratoryfor assembling/disassembling

Product Overview
The TPS Lifting-1575 ESD workstation is an industrial-grade, height-adjustable electronic workbench providing comprehensive electrostatic discharge protection. It is compliant with IEC 61340-5-1:2016 with verified point-to-point resistance stability between 10% and 60% relative humidity. The electric lifting mechanism enables ergonomic sit-stand operation for assembly, testing, repair and rework workflows. The work surface is a 25 mm HPL ESD laminated top in RAL7035, groundable and compatible with wrist-strap grounding.

Key Features

• IEC 61340-5-1:2016 compliant ESD protection with stable point-to-point resistance at 10%–60% RH.
• Electric height adjustment for ergonomic sit/stand use — adjustable range 720–1060 mm.
• 25 mm HPL static-dissipative top in RAL7035 providing a durable, conductive work surface.
• Load capacity: uniform static load 200 kg; uniform dynamic load 120 kg.
• Standard work surface dimensions: 1530 mm (L) × 750 mm (D).
• Fully configurable accessory system compatible with TPS accessories (back panels, antistatic steel shelves, suspension drawers, slant light brackets, LED kits, power rails, electric frames).
• Groundable structure supporting wrist-strap connection points and ESD flooring integration.
• Applications: electronics manufacturing, assembly, testing, rework, quality control and laboratory use.

Article & Manufacturer

• Article Number: ESD1085
• Manufacturer Code: WESD01005
• Manufacturer: TPS

Technical specifications

• Dimensions (L×W×H): 1530 × 750 × (720–1060) mm
• Work surface: 25 mm HPL ESD laminated top, color RAL7035
• Uniform static load: 200 kg
• Uniform dynamic load: 120 kg
• Lift function: electric lifting mechanism
• Adjustable height range: 720–1060 mm
• Compliance: IEC 61340-5-1:2016; verified point-to-point resistance stability 10%–60% RH
• Compatible accessories: back panel, antistatic steel shelf, suspension drawers, slant light bracket, LED kits, German-type power rails, electric frame options
