Paperless recorder AB3600

digitaldrying time

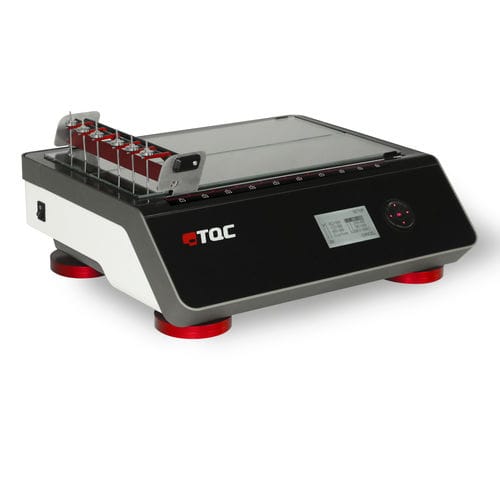

The TQC Drying Time Recorder is a fully digitally controlled machine to define the different stages in the drying process of paints and coatings. The TQC Drying Time Recorder operates conform the BK (Beck Koller) method. Defining the final result or checking intermediate stages is very easy by means of the clear digital display and the intuitive interface. The compact machine meets ASTM D5895, ISO 9117-4 and DIN EN 14022. The TQC Drying Time Recorder has six tracks, and comes with two robust and reusable glass beds of 100 X 350 X 3 mm. Optional are six narrow glass beds in special adapters. The front panel of the TQC Drying Time Recorder is made out of clear glass, which is easy to clean and protects the display underneath it. The TQC Drying Time Recorder is powered by a safe 24 V DC power supply.
