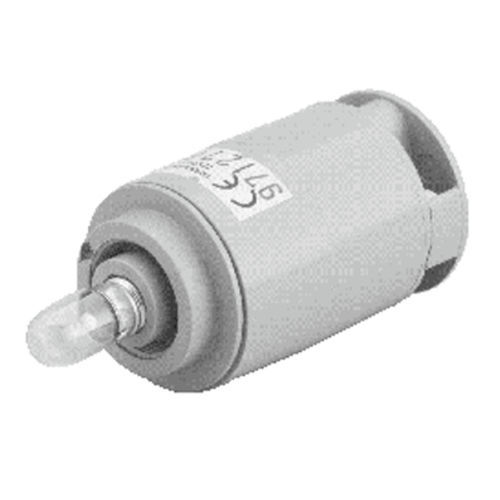

Voltage indicator TMU

frequencyLEDpanel

We have a wide selection of standard indicator lamps for Control Panels. All have a common choice of lenses in 6 colours: amber, red, green, blue, clear & white. Housings/bezels for 19, 22.5, 26.5 & 30.5mm diameter panel holes in chromed brass or plastic. All (except neon units) can accept filament, LED4 or LED7 cluster LED bulbs. All bodies screw to the housing. click here for housing range. Bodies accommodate MES (E10) bulb caps as standard with the alt option of MBC (BA9s) bulb caps. A low voltage bulb is supplied from the ac control voltage via a transformer. When a filament bulb is used its life can be increased by up to 4 times. Standard supply voltages (ac only): 24V, 100/120V, 220/240V & 400/440V Standard bulb voltage: filament - 6V 1.8W or LED cluster 4.5Vac Supply Frequency 50/60Hz
