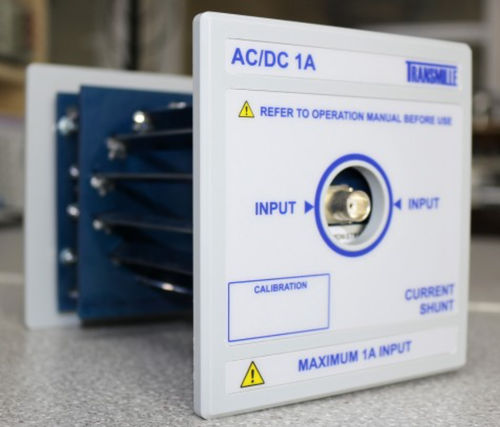

Precision shunt

Shunt values for measurements between 1mA to 100A Low inductance & capacitance flat frequency response AC/DC differences from 1ppm From DC to 30kHz Simplifies precision calibration of calibrators and current sources Can be used with a precision multimeter or an AC measurement standard The AC/DC current shunts provide excellent DC value stability, but also a wide range in frequency allowing measurements from DC up to and beyond 30kHz. The coaxial design of these shunts reduces inductive and capacitive effects, while an open design improves heat dissipation to minimize power co-efficients. The coaxial design offers superior accuracy and low electromagnet influences, ensuring a liner and predictable frequency response. Each shunt has a type N output connector to ensure low noise when measuring at high frequencies providing easy connections from the shunt to the measuring device. The set of AC/DC current shunts has been designed to enable fast and efficient calibration of multiproduct calibrators and current sources under a laboratory environment. Using the AC/DC current shunts in conjunction with an 8000 series multimeter the 3000A, 4000 and 9000A multiproduct calibrators can be efficiently maintained internally, as well as supporting other manufacturers products. AC/DC differences from 1PPM Superior accuracy compared to Wilkinson standard AC/DC resistors, minimising the use of correction factors for frequency response Shunt values for measurements between 1mA to 100A From DC to 30kHz Low inductance & capacitance flat frequency response Simplifies precision calibration of calibrators and current sources
