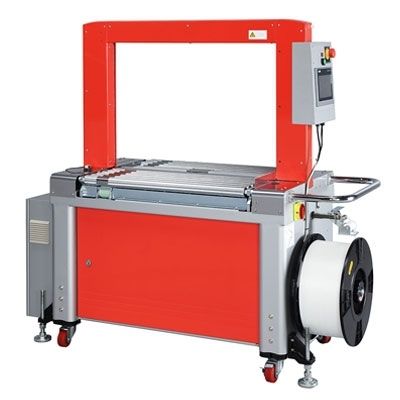

Fully-automatic strapping machine TP-702AH Mercury Transit
for packagingfor polypropylene strapshigh-speed

fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
Add to favorites
Compare this product


Characteristics

Type
fully-automatic
Product applications
for packaging
Type of strap
for polypropylene straps
Other characteristics
high-speed, bundle
Rate

Min.: 0 p/min

Max.: 36 p/min

Strap width

5 mm, 6 mm, 9 mm, 12 mm
(0.2 in, 0.2 in, 0.4 in, 0.5 in)

Clamping tension

Min.: 1 kg
(2.2 lb)

Max.: 45 kg
(99.21 lb)

Weight

290 kg
(639.34 lb)

Description

Mercury Transit TP-702AH is a fully automatic strapping machine with roller-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702AH is the fastest and most reliable strapping machine for general applications on the market today. Features • Robust & compact mechanical strapping head • Roller-driven table for heavy load packages • Equipped with Siemens PLC and HMI as standard • Waist-high auto strap feeding • Free access to strap guides (patents registered) • Electronic tension control • Auto strap ejector • Hinged top plates • Diverse strapping patterns • Variable conveyor speed between 15 and 60 meters/minute • Up and down stream interlock with complete plug connection • Easy bundle flow direction change • Good for heavy packages • Adjustable table height between 800 mm and 900 mm Options • Dual channel E-Stop • Light tower with low strap sensor • Energy saving transit with auto sleep mode • Strapping in the center of the bundle & strapping controlled with 2 photo eyes • Lower adjustable table height (750 mm – 900 mm) • Automatic tension control by package height detection (3 stage tension) • Automatically determining the number of straps by package length • Signal exchange via 16 pin connector
