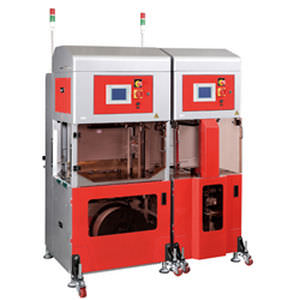

Fully-automatic strapping machine TP-702NIL
for canslateralin-line

fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
fully-automatic strapping machine
Add to favorites
Compare this product


Characteristics

Type
fully-automatic
Product applications
for cans
Other characteristics
lateral, in-line, bundle
Strap width

5 mm, 6 mm, 9 mm
(0.2 in, 0.2 in, 0.4 in)

Description

TP-702NIL is a fully automatic strapping system for inline cross strapping. The design without bundle turning can secure the integrity of the bundle for cross strapping. Features Robust & compact mechanical strapping head Automatic self-adjusting strap chute (patents registered) Siemens PLC control and HMI Easy access to strapping head (patents registered) Free access to strap guides (patents registered) Automatic tension control (patents registered) Dual pneumatic press Auto strap ejector Strap end ejector Up and down stream interlock with complete plug connection Options Energy saving transit with auto sleep mode Light tree alarm with low strap sensor (triple lamp) Soft press for convex bundle Lower adjustable table height with movable casters (730 mm – 830 mm) Automatic side squaring Reverse bundle flow Low volume bundle bypass Movable casters (picture shown with this option) Lever switch for bundle with wrapping

VIDEO

Catalogs

TP-702NIL
TP-702NIL
8 Pages
