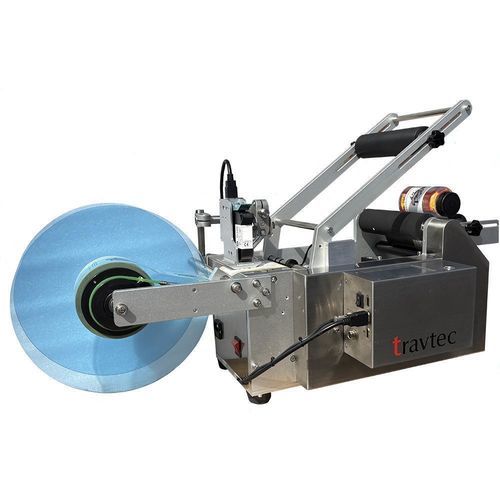

Semi-automatic labeler T-420i

for bottlesfor tubestabletop

Product overview
The T-420i is a tabletop off-line labeller designed to apply self-adhesive labels to cylindrical products such as bottles, jars, cans and tubes. It integrates a Thermal Inkjet (TIJ) printer for expiry dates and batch codes. Semi-automatic operation with quick-adjustment supports accurate label placement across a wide range of diameters and label sizes. The machine features an aluminium and stainless-steel framework and a clean design with minimal maintenance requirements.

Applications

• Bottles
• Jars
• Cans
• Tubes

Standard specifications
Construction: Aluminium and stainless-steel framework.
Operation: Semi-automatic tabletop unit with quick-adjustment. UKCA & CE certified.
Controls: HMI, On/Off switch, precision label gap sensor.
Power: 230 V AC, single phase, 1.5 kW.
Throughput: Up to 20 labels per minute (operator dependent).
Label size: Length 10–300 mm; Width 10–180 mm.
Product size: Diameter 20–180 mm; Length 30–500 mm.

Technical specifications

• Model: T-420i
• Type: Tabletop labeller with Thermal Inkjet (TIJ) coder for expiry dates & batch codes
• Operation: Semi-automatic with quick-adjustment
• Framework: Aluminium / Stainless steel
• Certifications: UKCA & CE
• Controls: HMI, On/Off switch, precision label gap sensor
• Power: 230 V AC, single phase, 1.5 kW
• Throughput: Up to 20 labels per minute (operator dependent)
• Supported label size: Length 10–300 mm; Width 10–180 mm
• Supported product size: Diameter 20–180 mm; Length 30–500 mm
• Design: Clean layout with minimal maintenance requirements
