IP66 cable entry plate MC 35/37
IP67

IP66 cable entry plate
IP66 cable entry plate
IP66 cable entry plate
IP66 cable entry plate
IP66 cable entry plate
IP66 cable entry plate
IP66 cable entry plate
Add to favorites
Compare this product


Characteristics

Specifications
IP66, IP67
Cable diameter

Max.: 32 mm (1.26 in)

Min.: 6 mm (0.24 in)

Description

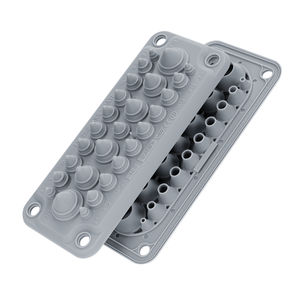

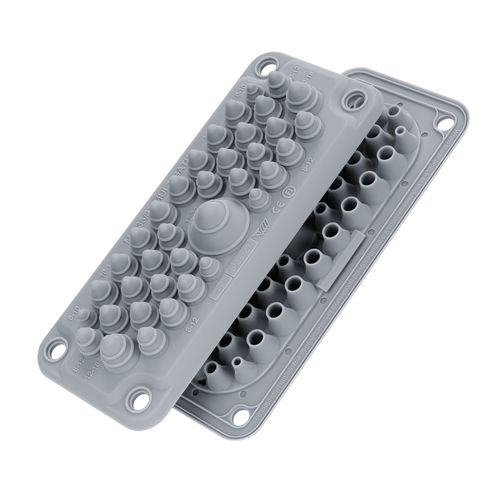

MC 35/37 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21). MC 35/37 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit. MC 35/37 Multigate is suitable for both outdoor and indoor use. MC 35/37 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m. MC 35/37 Multigate can be used instead of MC 35 Multigate. The configuration has the same openings than MC 35 and 2 extra. MC 35/37 Multigate is inspected and sertified by SGS MC 35/37 Multigate will lead through and seal cables as follows: 6 - 10 mm 4 pcs 8 - 12 mm 14 pcs 10 - 14 mm 16 pcs 12 - 18 mm 2 pcs 17 - 32 mm 1 pc
