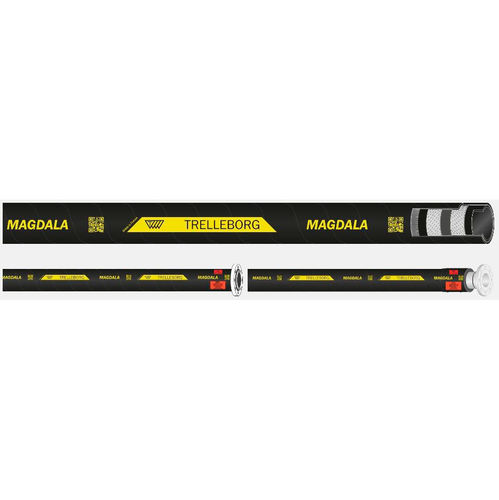

Crude oil hose MAGDALA
for gasolinefuel oilfor diesel

crude oil hose
crude oil hose
Add to favorites
Compare this product

Characteristics

Use
for crude oil, for gasoline, fuel oil, for diesel, for hydrocarbons
Applications
discharge, transfer, for marine applications, dispensing
Material
NBR, CR, synthetic yarn, Viton®
Other characteristics
UV-resistant, wear-resistant, for biofuels, vulcanized, without metal reinforcement, flexible, oil-resistant, smooth, chemical-resistant, heat/cold-resistant, liquid-tight, for hazardous fluids, weather-resistant, lightweight, anti-static, thin-walled, flat, crush-resistant, with flange, flameproof, for flammable products, ATEX, with smooth inner surface, heat-resistant
Inner diameter

Max.: 300 mm (11.811 in)

Min.: 50 mm (1.969 in)

Outer diameter

Max.: 316 mm (12.441 in)

Min.: 62 mm (2.441 in)

Pressure

Max.: 60 bar (870.226 psi)

Min.: 15 bar (217.557 psi)

Temperature

Max.: 82 °C (179.6 °F)

Min.: -20 °C (-4 °F)

Description

* Flat-coiled * Light for easy hangling * Kinkable and collapsible design HNBR liner available on request for hot oil up to 125°C in continuous service or 135°C in temporary service. FKM liner available on request for refined products with aromatic content up to 100% or hot oil at 200°C in temporary service. Applications Discharge of petroleum products for dock or barge service. For refined products with aromatic up to 50% in compliance with En 1765. Advantages Can be coiled flat. Smooth inner tube to optimize flow. Bendable and collapsible hose design. Overview Inner tube oil resistant NBR, black, smooth Reinforcement synthetic textile, cords Cover oil and weather resistant CR, black, fabric impression Temperature range -20°C to +82°C. Electrical properties built-in conductive wire, R<0.5Ω/m (electrical discontinuity available on request). Standard/Approval EN 1765:2016 type L10/L15. Couplings/Fittings Manufactured with fixed or swivel built-in flanges (standard shank or END-FLEX® type)
