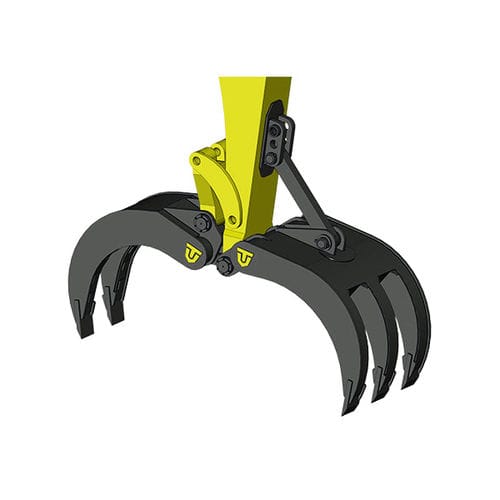

MECHANICAL HANDLING GRAPPLE RG SERIES
Ideal in lifting, transport and loading operations in recycling centers, waste loading/unloading, demolition work, scrap handling and rocks.
Models15 models (see the specifications in the data sheet)
Weightsweights: from 95 to 11.000 kg
Excavator weightsexcavator weights: from 1,2 to 170 ton
Widthopenings: from 1.000 to 5.000 mm
Model with "independent fulcrum": it pushes on a saddle attacks placed on the jaw and not directly on the fulcrum. Extremely easy to use when handling large boulders.
5-tooth configuration, 2 on the front and 3 on the back
Totally built in HARDOX 400
No hydraulic system required because it exploits the thrust force of the piston of the excavator's penetrating arm
Connecting rod and support to be welded supplied with the grapple
Support with 3 holes: 3 positions = 3 different jaws opening
Greasing points on the fulcrum pins
