Standard tooth bucket VSD series
for excavatorsfor loaderswelded

standard tooth bucket
standard tooth bucket
standard tooth bucket
standard tooth bucket
standard tooth bucket
standard tooth bucket
standard tooth bucket
Add to favorites
Compare this product


Characteristics

Type
standard tooth
Load-bearing
for excavators, for loaders
Cutting edge / teeth type
welded, bolted
Bucket width

Max.: 4,000 mm
(157 in)

Min.: 2,200 mm
(87 in)

Capacity

Max.: 5.5 m³
(194.23 ft³)

Min.: 1.2 m³
(42.38 ft³)

Bucket weight

Max.: 5,072 kg
(11,181.85 lb)

Min.: 365 kg
(804.69 lb)

Description

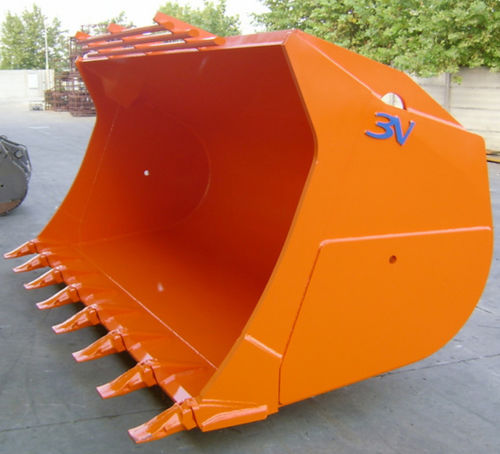

Front bucket for loading shovel built for light and non-heavy load applications. Suitable for medium-consistency materials such as soil, non-compact sand, gravel and dry clay. There are many models available depending on the width, material and load capacity required. Possibility of supplying the bucket complete with teeth, with a tooth-cover blade, with a welded or bolted under-blade depending on the needs of the user.
