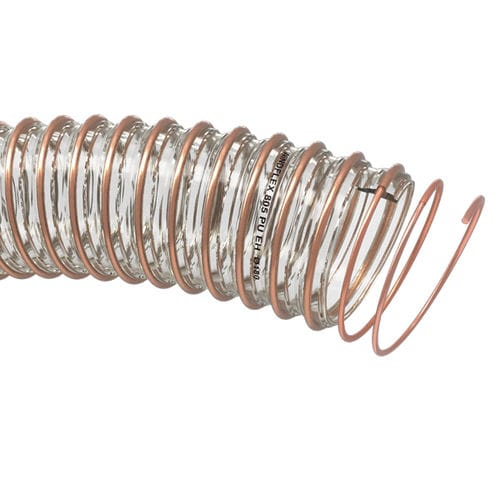

Flexible air duct WINDFLEX 805 EH

polyurethaneextractionzinc-plated steel spiral

FLEXIBLE ETHER-BASED POLYURETHANE DUCTING, REINFORCED BY A SPRING-LOADED QUALITY COPPER-PLATED STEEL COIL EMBEDDED IN THE WALL. Wall thickness of 0.7 to 0.8 mm. Electrical bonding by earthing the steel coil. UL94 V2 certified non-flammable polyurethane. APPLICATIONS Suction and expulsion of all types of powders, pellets, filings, and shavings SECTORS OF ACTIVITY All industries, agriculture. Ducting developed especially for roadways. ADVANTAGES Utmost flexibility and tried and tested mechanical strength. A wall thickness and helical pitch adapted according to diameters, in order to respond to the most common current requests. FITTINGS Regular single-wire sleeve clamps. Simply screwing two lengths of the same diameter together may also be possible in some cases (with small diameters). Before assembly, make sure that the connector is not hazardous to the inner tube (particularly in the case of poorly fettled and therefore sharp fittings). CHEMICAL RESISTANCE Voir tableau des résistances chimiques colonne C.
