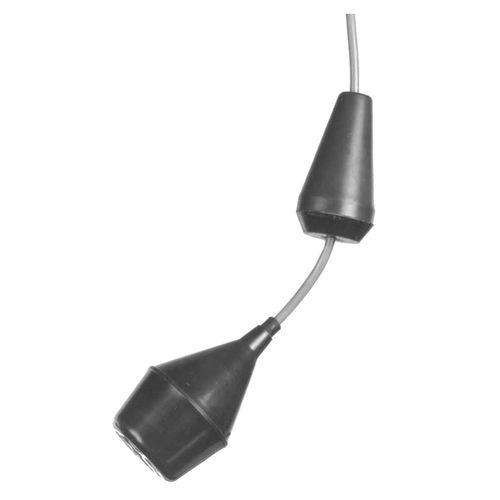

Mini-float switches with a diameter of 76 mm and up to two switch points. They are suitable for use in calm media, and have no lead or mercury components.
Switch elementMicro switch
Loop supply voltage6 to 250 VAC or VDC
Electricity outputmin. 100 mA to max. 6 A resistive load, 3 A Ind.
Max. Power75 Watt (0.3 A at 250 V) DC
Temperaturemax. 55°C, special types 75°C
Range of adjustmentStandard types 200 to 1200 mm
(50 to 100 mm, 100 to 200 mm, 1200 to 2000 mm)
Cable length5 m
Weight0.55 to 1.7 kg
BuoyancyFloat switch 6 N
Mini float switch 2 N
Float øMini 76 mm
Float lengthMini 130 mm
Cable insulationPVC, by request: PUR, TPU, Aton (Rubber)
