Digital display height gauge V1

digital with marking instrumentelectronichigh-precision

Product Overview

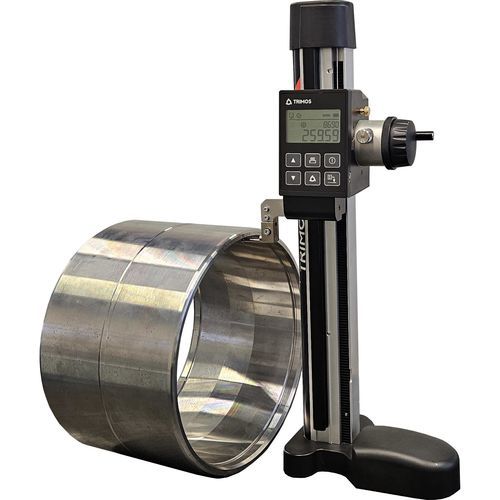

The Trimos V1 & V1+ are small portable height gauges and scribing instruments for the workshop and are ideal for simple applications such as measuring heights, tracing and diameters / center distances. These instruments are designed as a bridge between traditional scribers and advanced height gauges, embodying Swiss precision, reliability, and user-friendly design.

V1 Model
Ideal for those taking their first steps into precision measurement. The V1 simplifies unidirectional measurements and tracing with remarkable ease. It offers a seamless transition for users accustomed to manual scribers, upgrading their toolset without sacrificing simplicity and robustness. This instrument is crafted to endure, embodying the Swiss ethos of durability and precision, with features tailored for immediate application.

V1+ Model
This model takes the foundational qualities of the V1 to new heights, catering to those looking to broaden their measurement capabilities. In addition to bidirectional measurement, which enhances versatility without requiring extra accessories, the V1+ is also perfectly suited for diameter measurements, both internal and external. It also features advanced fine adjustment and a constant measuring force, both critical for improving measurement accuracy and repeatability.

Main Features

• Robust and Easily Portable
• Clear, Simple User Interface
• Counterweight for Operational Comfort
• Quick and Smooth Carriage movement
• Designed and manufactured in Switzerland
• Diameter Measurement Capability (V1+)
• Measuring Force Management (V1+)
• RS232 Connectivity (Bluetooth coming soon)
• Available in 300 and 600 mm models

Key Functionalities (from gallery descriptions)

• Precision Scribing: Tailored for precision scribing applications in tough environments.
• Bidirectional measurements: Advanced capabilities including diameters and centerline measurements without extra tools (V1+).
• Robust Design: Engineered for durability, reliability, and easy transportability.
• Operating comfort: A counterweight system provides unparalleled operational efficiency and comfort.
• Enhanced Accuracy: Includes measuring force management for consistent precision (V1+).
• Immediate Use Readiness: Very simple and intuitive operation. Clear and large display.
• Extended measurements

Technical details
V1
Measuring range | mm (in) | 300: 306 (12) | 600: 611 (24)
Max permissible errors, BMPE | mm | 300: 0.018 | 600: 0.030
Repeatability, RMPE (2s) | mm | 0.010 (both 300 and 600)
Max. Resolutions | mm (in) | 0.01 (0.001) (both 300 and 600)
Measuring force | N | –
Autonomy | h | 2000 (both 300 and 600)
Interfaces | RS232
Max. travel speed | mm/s | 1500 (both 300 and 600)
Weight (steel base) | kg | 300: 7 | 600: 8

V1+
Measuring range | mm (in) | 300: 306 (12) | 600: 611 (24)
Max permissible errors, BMPE | mm | 300: 0.015 | 600: 0.025
Repeatability, RMPE (2s) | mm | 0.005 (Ø: 0.01) (both 300 and 600)
Max. Resolutions | mm (in) | 0.001 (0.0001) (both 300 and 600)
Measuring force | N | 3 (both 300 and 600)
Autonomy | h | 2000 (both 300 and 600)
Interfaces | RS232
Max. travel speed | mm/s | 1500 (both 300 and 600)
Weight (steel base) | kg | 300: 7 | 600: 8
Weight (granite base) | kg | 300: 13.4 | 600: 15
The above values were determined in accordance with ISO 13225 using the TA-MI-121 insert. RMPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.

Characteristics / Technical Specifications

• Models: V1 and V1+
• Measuring range: 306 mm (12 in) or 611 mm (24 in)
• Max permissible errors: V1 (0.018 mm/0.030 mm), V1+ (0.015 mm/0.025 mm)
• Repeatability: V1 (0.010 mm), V1+ (0.005 mm, Ø: 0.01 mm)
• Resolution: V1 (0.01 mm/0.001 in), V1+ (0.001 mm/0.0001 in)
• Measuring force: V1 (–), V1+ (3 N)
• Autonomy: 2000 h
• Interfaces: RS232
• Max travel speed: 1500 mm/s
• Weight (steel base): 7 kg (300 mm), 8 kg (600 mm)
• Weight (granite base, V1+): 13.4 kg (300 mm), 15 kg (600 mm)
