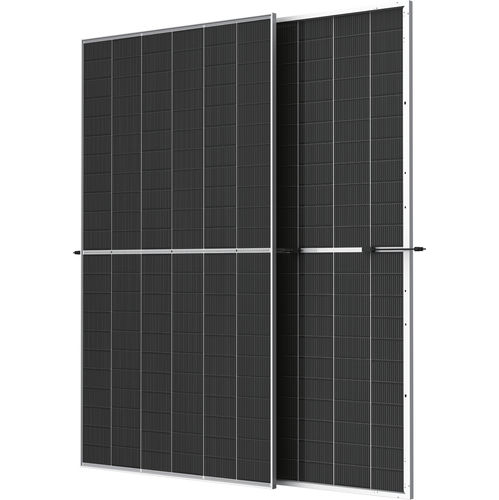

Monocrystalline silicon solar module TSM-NEG21C.20
CEISOTUV

Add to favorites

Compare this product

Go to the Trina Solar website for more information

Characteristics

Material

monocrystalline silicon

Certifications

CE, TUV, IEC, ISO

Other characteristics

black, on glass

Peak power (Wp)

Max.: 700 W

Min.: 517 W

Open-circuit voltage

Max.: 48.6 V

Min.: 44.9 V

Short circuit current

Max.: 18.25 A

Min.: 14.62 A

Max power voltage

Max.: 40.5 V

Min.: 37.2 V

Max power current

Max.: 17.23 A

Min.: 14.05 A

Module efficiency

Max.: 22.5 %

Min.: 21.7 %

Lenght

2,384 mm
(94 in)

Width

1,303 mm
(51 in)

Height

33 mm
(1 in)

Weight

38.3 kg
(84.44 lb)

Description

• The star of LCOE (Levelized Cost Of Energy) .Higher string power feature eectively reduces BOS (Balance of System)and LCOE •More energy harvest with cutting-edge N-type i-TOPCon technology •Designed for compatibility with existing mainstream system components • Up to 22.5% module eciency with high density interconnecttechnology • SMBB (Super multi-busbar) technology for better light trapping eect, lower series resistance and improved current collection • Minimized micro-cracks with innovative non-destructive cuttingtechnology • Ensured PID resistance through cell process and module material control • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas • Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load • Excellent product bifaciality and low irradiation performance, validated by 3rd party • Lower degradation： 1% rst year， 0.4% annually thereafter • Lower temperature coecient (-0.30%) • Up to 30% additional power gain from back side depending on albedo
