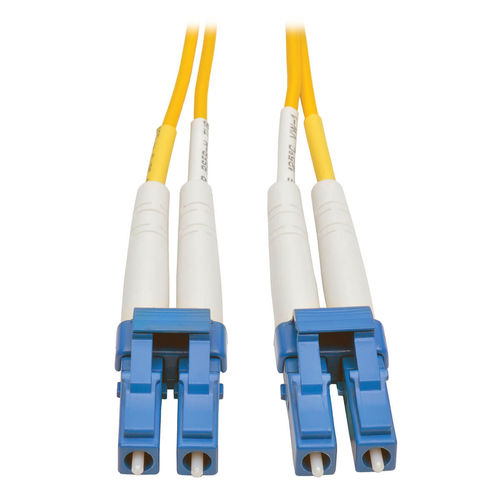

Fiber optics patch cable N370-01M

LANduplex

Premium PVC 9/125 micron singlemode patch cables Attenuation loss meets or exceeds the latest industry standards Twice the bandwidth throughput of multimode cable Features Manufactured from 9/125 duplex (zipcord) fiber PVC jacket Length: 1-meter ( 3ft ) Connectors: 2 LC and 2 LC connectors on each end Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze Fiber made from glass (not a polymer) Fiber optic distributed data interface (FDDI) rated OFNR (riser rated) System Requirements Any fiber optic hardware or NIC card requiring singlemode duplex cable with LC/LCconnectors Package Includes 1-meter ( 3ft ) Duplex Singlemode Fiber Patch Cable, LC/LC Specifications OVERVIEW Technology - Singlemode Optical Mode - OS2 CONNECTIONS Endface Polish - UPC PHYSICAL Cable Jacket Color - Yellow Connector Color - Blue; White Cable Jacket Material - LSZH Cable Jacket Rating - OFNR Cable Outer Diameter (OD) - 2.0MM Clad Diameter (microns) - 125 Core Diameter (microns) - 9 Number of Fibers - 2 Cable Length (m) - 1.01 Minimum Bend Radius - 20 mm (Dynamic); 10 mm (Static) Shipping Dimensions (hwd / cm) - 22.86 x 17.78 x 1.27 Shipping Weight (kg) - 0.02 Fiber Cable Length - 1M (3.3 ft) ENVIRONMENTAL Operating Temperature Range - -4° to 140°F (-20° to 60°C) Storage Temperature Range - -4° to 140°F (-20° to 60°C) Operating Humidity Range - 5% to 85% RH, Non-Condensing Storage Humidity Range - 35% to 65% RH, Non-Condensing COMMUNICATIONS Network Compatibility - 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Attenuation @ 1310NM - 0.36 dB/km
