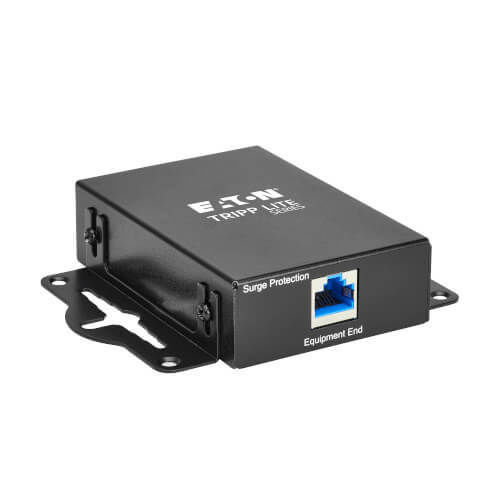

Cat 5/Cat 6 network surge protector B110-SP-POE-1PoEcompactRJ45
Add to favorites
Compare this product
Characteristics
- Applications
- for Cat 5/Cat 6 networks
- Other characteristics
- compact, RJ45, ESD, in-line, PoE
Description
Overview
Key benefits / features
Package contents
Certifications & compliance
Warranty
Technical specifications
- In-line IEC-compliant PoE surge protector that prevents ESD and other power surges from damaging network equipment.
- Protects Power over Ethernet (PoE) devices such as IP cameras, wireless access points and VoIP phones.
- Supports IEEE 802.3af and 802.3at (PoE / PoE+) and network speeds up to 1 Gbps.
- Rapid response time < 1 ns for ESD and surge mitigation.
- Plug-and-play operation with compact ABS housing and included mounting hardware; no external power or software required.
- TAA compliant for eligible procurement.
Key benefits / features
- Inline installation between PoE source and device using standard Cat5e/6 cabling.
- Solid-state silicon-avalanche diode technology with low clamping voltage and sub-nanosecond response to ESD and surges.
- Supports both mid-span and end-span PoE deployment scenarios.
- Meets IEC/EN test standards: IEC 61000-4-2 (ESD) up to 30 kV (air/contact) and IEC 61000-4-5 surge tests 5 kA (8/20 µs) / 4 kV (10/700 µs).
- Compact, black ABS housing with surface-mount brackets and grounding wire included for dependable installation.
Package contents
- B110-SP-POE-1 In-Line PoE Surge Protector
- Grounding wire, 1 ft (0.3 m) and grounding screw
- (4) Mounting screws and (2) surface-mount brackets
- Installation instructions
Certifications & compliance
- TAA compliant (eligible for certain federal procurements)
- RoHS compliant
- Meets relevant IEC/EN surge and ESD standards
Warranty
- 2-year limited warranty
Technical specifications
- UPC: 037332286932
- Product type: In-Line Surge Protector
- Accessory type: Surge Protector
- Technology / recommended cable: Cat5/5e; Cat6; Cat6a
- Number of ports: 1
- Network compatibility / speed: 1 Gbps (Gigabit)
- PoE capability: Type 1 PoE (15.4 W, IEEE 802.3af); Type 2 PoE+ (30 W, IEEE 802.3at)
- Side A connector 1: RJ45 (female)
- Side B connector 1: RJ45 (female)
- Connector plating: Gold
- AC suppression joule rating: 0
- AC suppression response time: <1 ns
- ESD protection: +/-15 kV (air); +/-8 kV (contact)
- EFT protection: 2 kV
- Lightning protection (surge capabilities): 2 kA (8/20 µs), 6 kV (8/20 µs)
- Material of construction: ABS
- Housing color: Black
- Unit weight: 0.25 kg
- Shipping weight: 0.56 kg
- Shipping dimensions (H x W x D cm): 5.51 x 15.49 x 12.19
- Operating temperature: 0° to 40°C (32° to 104°F)
- Storage temperature: -15° to 50°C (5° to 122°F)
- Relative humidity: 0-85% non-condensing
- Grounding: Includes 1 ft (0.3 m) grounding wire with screw
- Mounting details: Two surface-mount brackets with screws included
- Recommended category cable: Cat5/5e/6
