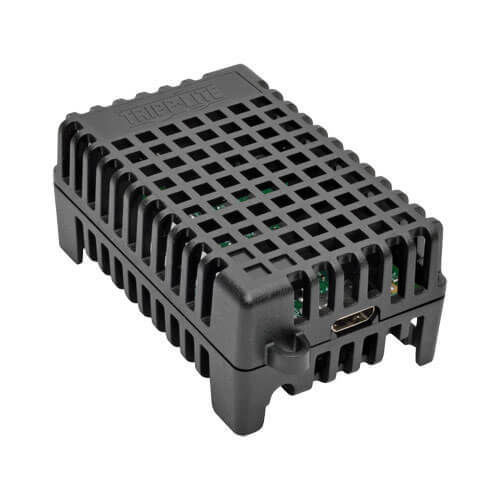

Magnetic-mount temperature sensor EnviroSense2 (E2)

USBambient airenvironmental

Overview The E2MT EnviroSense2 (E2) Environmental Sensor Module connects to LX Platform devices (including WEBCARDLX, WEBCARDLXE, WEBCARDLXS, PDU3XE-Series and PDU3E-Series PDUs). Using the included 3 ft USB cable (A to Micro-B), the module enables remote monitoring and event logging of ambient temperature in network environments. The unit mounts magnetically to most racks and cabinets, supports daisy-chaining up to three modules, and features a built-in retention harness to secure cable connections and reduce clutter.

Key Benefits

• Remote ambient temperature monitoring with event logging
• Direct compatibility with LX Platform devices for centralized management
• Magnetic mounting for fast installation in racks and cabinets
• Supports daisy-chaining up to three E2 modules for expanded coverage
• Built-in cable harness keeps connections secure and organized
• Includes USB cable for immediate deployment

Features

• Compatible with LX Platform devices (WEBCARDLX, WEBCARDLXE, WEBCARDLXS, PDU3XE, PDU3E)
• Measures and monitors ambient temperature with event logging to the LX Platform device
• Magnetic attachment suitable for most racks and cabinets
• Supports daisy-chaining of up to three E2 modules to monitor multiple points
• Built-in retention harness secures cable connections and reduces strain
• Includes 3 ft USB cable (A to Micro-B) for connection to LX devices
• Works with PowerAlert software for remote monitoring and alerts

Package Includes

• E2MT EnviroSense2 Environmental Sensor Module
• USB cable (A to Micro-B), 3 ft
• Owner's manual

Warranty 2-year limited warranty.

Certifications TAA compliant; RoHS compliant.

Technical specifications

• Commercial name: EnviroSense2 (E2)
• Part number / Model: E2MT
• UPC / EAN: 037332196293
• Connections: Side A - USB A (female); Side B - Micro-USB B (female)
• Cable length: 3 ft (A to Micro-B)
• Unit dimensions (H x W x D): 0.830 x 2.520 x 1.420 in
• Shipping dimensions (H x W x D): 1.10 x 4.20 x 5.90 in
• Shipping weight: 0.28 lbs
• Product compatibility: WEBCARDLX; WEBCARDLXMINI; WEBCARDLXE and other LX Platform devices
• Sensing capability: Ambient temperature monitoring
• Contact closure capability: Contact closure input monitoring (where supported by module variant)
• Product compliance: Trade Agreements Act (TAA)
• Warranty period (worldwide): 2-year limited warranty
