Orientable monitor mount WWSS1327CP

adjustable-heighttable-mountedswiveling

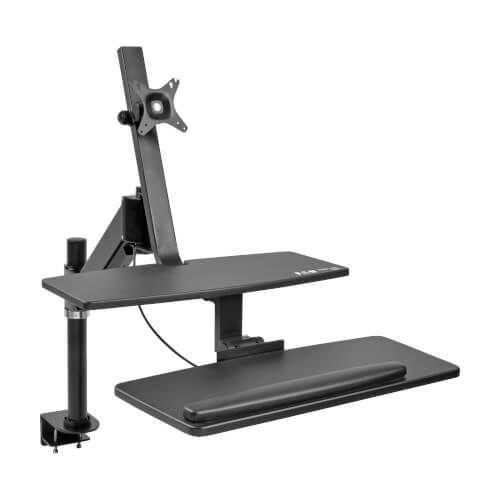

Overview The Tripp Lite WWSS1327CP sit‑stand clamp‑on workstation converts a fixed‑height desk or table into an ergonomic sit‑stand solution without altering the full work surface. The clamp fits work surfaces 1.0 to 3.35 in (25–85 mm) thick. One‑touch pneumatic height adjustment raises or lowers the workstation for ergonomic positioning. The articulated arm delivers smooth movement, adjustable tension for different loads, integrated cable management and a 49.8 in (126.5 cm) front‑to‑back swing range. The single‑arm monitor mount supports 13–27 in displays and VESA 75x75 and 100x100 patterns.

Key Features

• Pneumatic one‑touch height adjustment with lever for smooth raise/lower action
• Lever can be mounted on left or right side of the keyboard tray
• Adjustable arm tension to compensate for heavier or lighter loads
• Sturdy clamp mount for flat surfaces 1.0–3.35 in (25–85 mm) thick
• Arm motion: ±3 in vertical adjustment, 150° swivel, 360° display rotation
• Integrated cable management to keep cables routed along the arm
• Monitor mount fits 13–27 in displays; tilt -13° to +45°; supports portrait and landscape
• Middle platform 23.6 x 9.9 in (60 x 25.2 cm) for accessories or a small laptop
• Extra‑large keyboard tray 23.6 x 10.6 in (60 x 27 cm); tray raises up to 14.5 in (36.8 cm) above work surface; removable wrist rest
• Maximum weight capacity: 29 lb (13 kg)

Package Includes

• Pneumatic arm with lever
• Middle platform
• Keyboard tray with removable wrist rest
• Mount bracket, top and bottom clamp pieces, support mast and two brackets
• Post, EVA pad, pressure plate, cable manager and clip, arm swivel washer
• Assorted M4, M6 and M8 screws, M8 nuts, spacers, socket wrench, hole plugs and hex keys
• Owner’s manual

Notes

• Keyboard tray lowest position is 2.5 in (6.4 cm) below the work surface; highest is 14.5 in (36.8 cm) above the work surface
• Middle platform lowest position is 1.2 in (3.0 cm) above the work surface; highest is 20.9 in (53.1 cm) above the work surface
• Display supports VESA 75x75 and 100x100 mounting patterns

Technical Specifications

• UPC Code: 037332197122
• Color: Black
• VESA Pattern (mm): 75x75; 100x100
• Mounting Location: Desk clamp (fits work surface thickness 1.0 to 3.35 in / 25–85 mm)
• Degrees of Motion: 150° swivel on arm; 360° rotation on display
• Maximum Weight Capacity: 29 lb (13 kg)
• Number of Displays: 1
• Unit Dimensions (H x W x D / cm): 85.598 x 59.944 x 125.730
• Unit Weight (kg): 15.97
• Shipping Dimensions (H x W x D / cm): 18.03 x 41.40 x 77.47
• Shipping Weight (kg): 19.37
• Cord Management: Integrated cable management on arm
• Tools Necessary: Yes (hex keys and socket wrench included)
• Product Compliance: RoHS
• Warranty: 5‑year limited warranty
