Lauter tun wedge wire screen
flatslotfor the food and beverage industry

lauter tun wedge wire screen
lauter tun wedge wire screen
Add to favorites
Compare this product


Characteristics

Construction
flat, slot
Applications
for the food and beverage industry, for lauter tun

Description

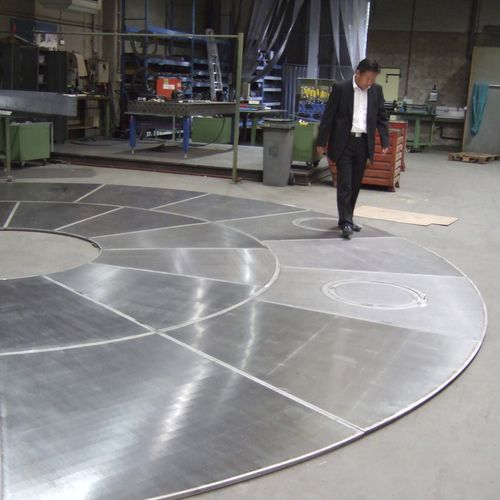

Beer Industry WEDGE WIRE SPECIFICATIONS : • Slot opening: 0,5 - 0,75 mm • Surface profile: 22S - 28S - 34S • Support profile: 10x3 - Q35 • Open area: 20% up to 30% • Mainly AISI 304 in some cases AISI 316 The wedge wire floor consists of segments that can be installed or retrieved through the manhole. The wedge wire false bottoms have a significantly larger open area compared to the traditional milled floor screens because of the continuous slots. A test case with a bottom of 2100 mm has proved that the filtration time was reduced with 40% . STRENGTHS : • Self supporting • Ready to go design • Custom built • We have solutions for all types of breweries • Perfectly flat screens • Interlocking • High open area • Good cleanability
