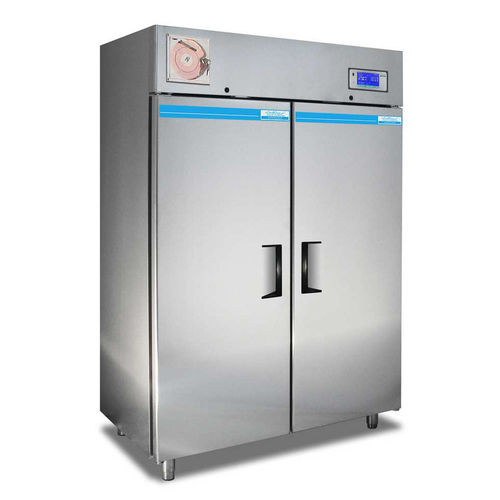

Blood plasma freezer TC 513

blood plasma freezer
blood plasma freezer
Add to favorites
Compare this product


Defrost mode
automatic defrost
Supply voltage
230 V
Other characteristics
low-temperature, stainless steel
storage, cooling, for blood plasma, medical

1,500 l (396 gal)


Min.: -40 °C (-40 °F)

Max.: -15 °C (5 °F)


2,100 mm (82.7 in)


1,500 mm (59.1 in)


860 mm (34 in)


Housing galvanized sheet steel with high quality white coating, antibacterial coated. With 4 feet, height adjustable. Optional: of stainless steel (Backplane, as well as top and bottom side of the cabinet of galvanised sheet steel) Set of 4 castors, 2 lockable Interior space Inner case of galvanized sheet steel with high quality white coating, antibacterial coated. Cleaning friendly by rounded corners, slippery surface in the interior, meets highest hygiene requirements Optional: of stainless steel Insulation high density foamed-in-place polyurethane, with a thickness of 75 mm. CFC-free Circulation air cooling for rapid and uniform temperature control, reducing temperature gradients to a minimum. When the door is "open" the circulating fan is switched off automatically by a micro switch in order to prevent warmer ambient air being drawn in. Door Three-layer thermally insulating glass two-door, right and left-hand hinge. Grease resistant magnetic seal. With door lock, incl. 2 keys. Optional: with electronical door lock Interior fittings 10 pcs. Stainless Steel drawer compartments, with 3 lengthwise dividers with telescopic-type guides on rollers with stops, drawer dimensions: 500x580x77 mm (WxDxH) Usable with between the lengthwise dividers: 106 mm (lengthwise dividers easily removable) For approx. 800 cartons without lengthwise dividers, or 640 cartons with lengthwise dividers (carton size: 400 ml, dim: WxDxH: 135x 25 x190 mm) Optional: For reducing cold air loss also with cooling bezels of acryl glass available.
