wall thickness gauge / ultrasonic / wireless / portable
Multigauge® 5700

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

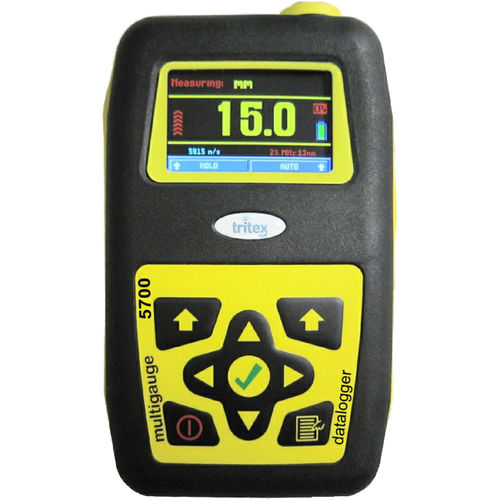

wall thickness gauge wall thickness gauge - Multigauge® 5700
{{requestButtons}}

Characteristics

  • Applications:

    wall

  • Technology:

    ultrasonic, wireless

  • Other characteristics:

    portable, with data logger, NDT, multiple-echo

  • Measuring range:

    Max.: 250 mm (9.84 in)

    Min.: 1 mm (0.04 in)

Description

The Multigauge 5700 Datalogger wall thickness meter is a general purpose thickness meter which has all the same features of the Multigauge 5600, but with the added advantage of having the capability to store measurements within the gauge. The meter uses Multiple Echo to ignore coatings, measuring only the remaing metal thickness.

Description
The Multigauge 5700 Datalogger wall thickness meter has all the same features of the Multigauge 5600 but with the added advantage of having the capability to store measurements within the gauge. Templates can be set up to store readings in a grid, string or combination of both, allowing complete versatility for all applications. Data transfer between the wall thickness meter and PC is done using a wireless RF transceiver. Intuitive menus ensure setup is very easy whilst the bright full colour LCD display can be used in all light conditions. Dedicated software, called Communicator, acts as the interface between the gauge and the PC. The gauge uses multiple echo to ignore coatings up to 6mm thick. An optional leather case is also available for extra protection.
