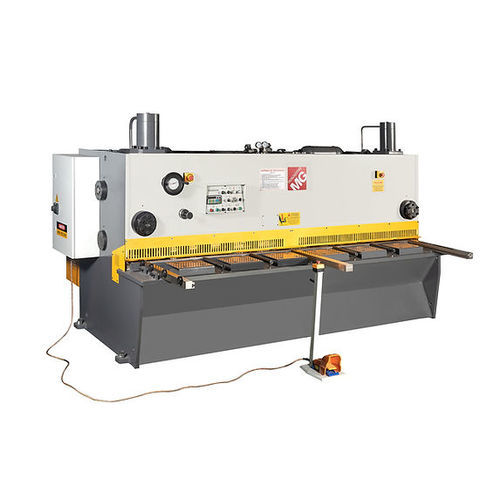

Hydraulic shear QC11Y series

for metalmotorized

- Steel structure to give rigidity and stability, consolidated with special treatment against vibrations and temperature changes. - Hydraulic transmission system. - Motorized rear stop with fine adjustment and digital display. - The separation between the blades is adjusted with a manual handwheel that ensures a fast, precise adjustment according to your needs. - Blade with 4 cuts. - Angle of adjustable cuts to avoid deforming the sheet. - The support of the upper blade has an internal tilting structure to facilitate the insertion of the sheet and allow a precise cut of the piece. - Cutting line with light. - Control panel with motorized rear stop control with automatic positioner of 99 programs and 20 cycles in each one. - Counter with cuts. - Swan neck. - 3 squaring arms 2 millimeters with stop. - Security rear photocell. - Emergency stop, with Stop at the front of the machine. - Electronic remote pedal, with collector connection to the electronic cabinet. - Hydraulic oil included. - Table with balls. OPTIONS: PACKAGING AND DIMENSIONS: 2450x1720x1350 mm (4000 Kg) Palet iron packaging Blows per minute 25. Rear stop length 500 mm Adjustable angle 1,25º 100 mm gooseneck Motor 7.50 Hp
