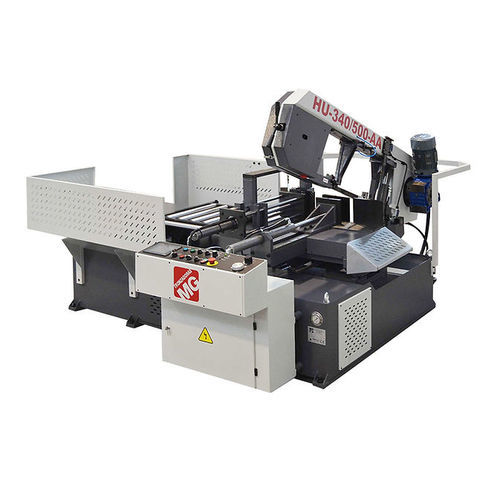

Band saw HU-340/500 AA CNC

for metalsautomatic

Automatic band saw for cutting iron, steel and métal alloys with bar feeder for automatic cutting. manufactured in Spain in accordance with directive 2006/42/CE Characteristics: •Bar feeder. Bar feeder on iron structure with 820 mm stroke with multiple advances for lengths greater than 820 mm. •Cutting cooling. Micro-spray saw cooling system with minimal oil consumption and zero waste generation. •Security elements. Emergency stop controlled by security module. Limit switch with interlock for detection of open saw guard. Détection of tape breakage and lack of tension. AU the dangerous areas of the feeder are protected by means of fixed protection devices. •Cutting list programming. Cutting list programming via OMRON 5.6” touch screen. Management of 10 programs of 30 lines each. •Cut degrees. Digital display of cutting degrees with fast positioning at 0-15-30-45 and 60° •Cut check. Cutting speed régulation by electronic speed variator between 26-86 m/min. Hydraulic arch lowering system with advance and cutting force régulation from the control panel. Material height sensing for changing fast approach
