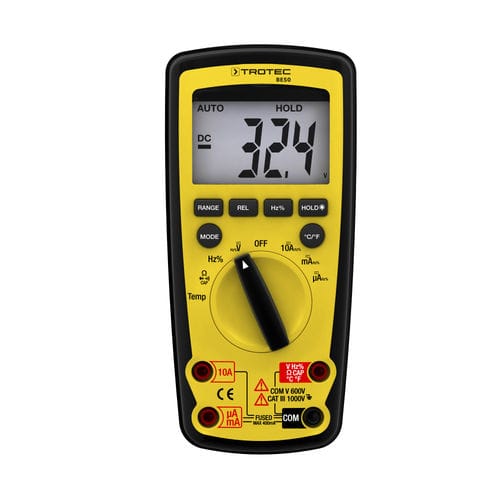

Digital multimeter BE50
portablewith thermometerindustrial

digital multimeter
digital multimeter
digital multimeter
digital multimeter
digital multimeter
Add to favorites
Compare this product


Additional features
with thermometer
Other characteristics


The BE50 is widely suitable for a whole host of applications which are not only restricted to the testing of electrical appliances. Benefits in practice: Non-contact voltage test Digital multifunctional measuring device with eleven measuring functions Extremely robust and powerful Automatic range selection CAT III 1000 V / CAT IV 600 V Shockproof housing IP67 dustproof protected and watertight Insulation Protection Class II for meter and measuring leads Temperature measurement with Type K contact sensor Hold function Backlit display Technical data of the BE50: Display: LCD with four-figure display Measuring range (accuracy) of the voltage: 0.1 mV to 1000 V (UDC ± 1.2 %, UAC ± 2 %) Measuring range (accuracy) of the electricity: 100 nA to 10 A (DC ± 1.5 %, AC ± 2.5 %) Measuring range (accuracy) of the capacity: 10 pF to 100 µF (± 3 %) Measuring range (accuracy) of the resistance: 0.1 Ω to 10 MΩ (± 1.2 %) Measuring range (accuracy) of the frequency: 1 mHz to 10 MHz (± 1.2 %) Measuring range (accuracy) of the temperature: -20 °C to +760 °C (± 3 %) range (accuracy) of the duty cycle: 0.1 % to 99.9 % (± 1.2 %) : For measuring voltage, electricity, resistance, frequency, contact temperature, duty cycle; flow test, diode test, automatic range selection, hold function, illuminated display, automatic battery test, auto power off Measuring circuit category: CAT III 1000 V / CAT IV 600 V Safety: EN 61326, EN 61010-1, EN 61010-02-031 Insulation: Protection Class II Type of protection: IP67 Weight: 320 g
