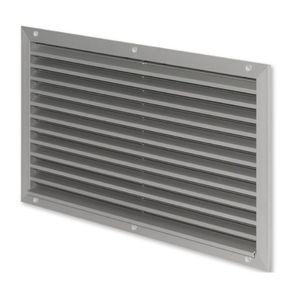

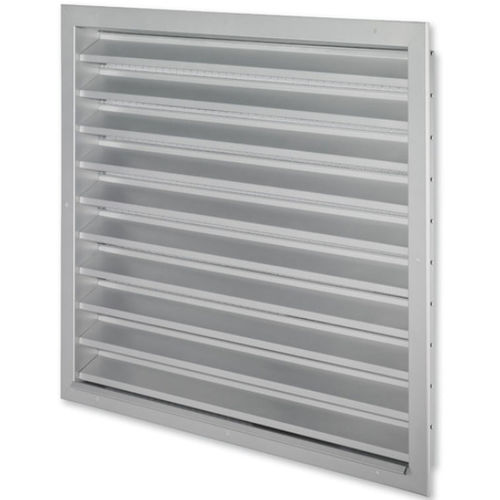

Air inlet louvre WG

FOR THE MOST DIVERSE APPLICATIONS, AVAILABLE ALSO IN LARGE SIZES External weather louvres as a protection of air conditioning systems against the direct ingress of rain, leaves and birds into fresh air and exhaust air openings Maximum width of 2400 mm, maximum height of 2310 mm, maximum area of 4 m² (aluminium variant also for continuous horizontal runs) Low differential pressure due to aerofoil blades Low air-regenerated noise All aerodynamic data is measured in aerodynamics and acoustics laboratories Available in standard sizes and many intermediate sizes Simple and quick installation due to perimeter border Variants made of galvanised sheet steel, aluminium or stainless steel Flexible arrangement of sections for covering large areas (should then be fixed on a support structure which is to be provided by others) Optional equipment and accessories Installation subframe Can be combined with multileaf or non-return dampers Insect screen Powder-coated or anodised
