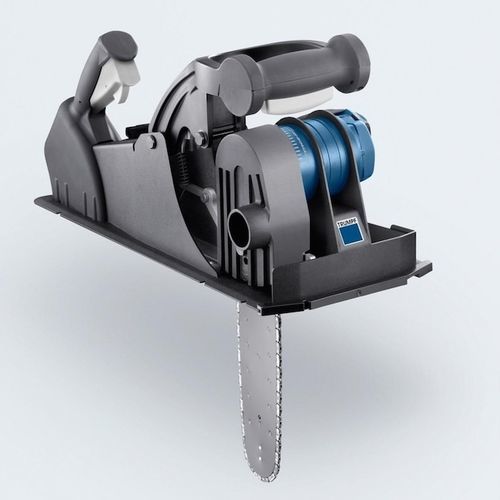

Knife cutting machine TruTool TPC 165

for aluminium foilfor steelfor foam

Overview
The TruTool TPC 165 is a portable panel cutter designed to cut sandwich panels up to 165 mm (6.5 in) thickness. Its blade insertion mechanism enables precise, perpendicular interior cutouts and notches in a single operation. The machine requires no complex presets: select the blade position and start cutting. It performs guided cuts on flat, trapezoidal and corrugated panel surfaces.

Key benefits

• Perpendicular cuts: 90° swiveling blade for accurate perpendicular interior cutouts and notches up to 165 mm depth.
• Insertion mechanism: Start interior cutouts at any position on the panel without turning the panel.
• High productivity: Working speed up to 4 m/min; can cut upper and lower sheets in one pass to reduce rework.
• Compact and light: Sheet-steel housing and low weight (9.6 kg) for easier handling on site.
• Integrated chain lubrication: Automatic lubrication prevents chain heating and maintains consistent cut quality and tool life.

Applications

• Flat sandwich panels (roof panels) with steel or aluminium faces; insulation: polyurethane foam, polyisocyanurate foam; panel thicknesses up to 165 mm.
• Corrugated sandwich panels with steel or aluminium faces; insulation: polyurethane foam, polyisocyanurate foam; panel thicknesses up to 165 mm.
• Trapezoidal sandwich panels up to 165 mm depth; suitable for various panel profiles.

Scope of delivery (consumables and included accessories)

• Wear plate, front — 1 unit (1814820)
• Blade 165 (integrated) — 1 unit (1809537)
• Wear plate (integrated) — 1 unit (1814819)
• Saw chain 165 (integrated) — 1 unit (1730983)
• Punching and nibbling oil for steel, 500 ml — 1 unit (0103387)
• Combination wrench — 1 unit (1797742)
• Case — 1 unit (1798090)
• Slide rail (set of 2, integrated) — set of 2 (1814882)
• Guide rail (1400 mm length) — 1 unit (1831777)
• Connector (for guide rail) — 1 unit (1831778)

Accessories / Consumables (examples)

• Replacement blades and chains specific to the TruTool TPC 165 (part numbers listed above).
• Additional slide rails and guide rails for guided cuts (available in specified lengths).
• Lubricants for punching/nibbling operations (see delivered oil item).

Technical specifications

• Maximum panel thickness: 165 mm
• Maximum individual material thickness for steel (up to 400 N/mm²): 0.9 mm
• Insulation materials: polyurethane foam, polyisocyanurate foam
• Smallest possible opening by piercing: 340 mm x 340 mm
• Working speed (max.): 4 m/min
• Cutting track width: 4 mm
• Nominal power consumption: 1600 W
• Length: 493 mm
• Height: 231 mm
• Weight: 9.6 kg
