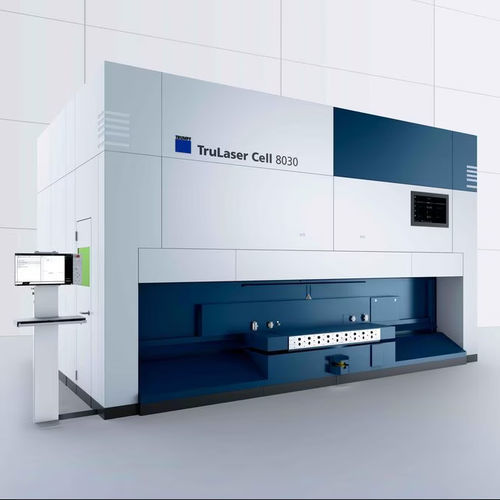

Metal cutting machine TruLaser Cell 8030
3D laserNCfor the automotive industry

metal cutting machine
metal cutting machine
metal cutting machine
Add to favorites
Compare this product


for metal
3D laser
Control type
for the automotive industry
Other characteristics
X travel

3,000 mm (118 in)

Y travel

1,300 mm, 2,100 mm (51 in)

Cutting speed

100,000 mm/min, 173,000 mm/min (65.617 in/s)

Laser power

Max.: 4,000 W

Min.: 2,000 W


Productive high-end 3D laser cutting machine The second generation TruLaser Cell 8030 once again sets the standard for the 3D cutting of hot-formed components. As a result of new developments and optimized details, it offers even greater production reliability, combined with arguably the highest productivity on the market. You can increase your profitability due to options such as the Smart Approach, Dynamic Level 2, or the rotary indexing table. Maximum productivity Compared to the previous model, you now benefit from even higher acceleration and Dynamic Level 3. Minimal non-productive time The optimized rotary table is the fastest on the market. With the rotation time of 1.8 seconds (which is 20% shorter), the overall performance is increased with each component. High level of robustness Experience gained from the largest installed base design of 3D hot-forming machines has been applied to the new machine. Diverse functions Optimized production processes due to functions such as X-Blast technology or ObserveLine Comfort & Professional Highest energy efficiency Combined with the TruDisk 2000, your power consumption and part costs will fall.
