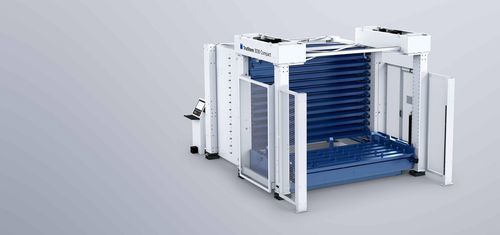

Vertical automatic storage system TruStore 3000 Compact series

compactmodular

Overview
The TruStore Series 3000 Compact tower storage system is an entry-level, modular storage solution for automated sheet metal production. It supports large and maxi sheet formats and can be connected to 2D laser cutting systems, punching machines or punch‑laser combinations to enable unattended and night-shift operation. Page references indicate storage capacities of approx. 15–85 tonnes and, in other sections, 18–75 tonnes depending on configuration.

Key benefits

• Scalable modular design for phased automation upgrades.
• Enables unattended production and night shifts to reduce part costs.
• Compact footprint with fast material changes and structured storage of raw material and finished parts.
• Transparent inventory and production control via Oseon software.

Variants & equipment

• Sheet format and loading weight variants: large format (approx. 3000×1500 mm) with up to 3000 kg per compartment; maxi format (approx. 4000×2000 mm) with up to 5000 kg per compartment.
• Single tower: pallet lift stores 6–13 large-format pallets (tower height ≈ 3390 mm) or 4–9 maxi-format pallets (tower height ≈ 3550 mm) at 90 mm stacking height; low pre-assembled tower reduces installation time and floor load.
• Double tower: add a second tower to increase capacity by up to 12 additional large-format or 8 additional maxi-format pallets.
• Input/output options: station under pallet lift for direct load/unload, flexible carts without lift, carts with lifting table, single or dual front carriages; traverse path adaptable to shop layout.
• Optional parts sorting: PartMaster conveyor belt and pallet base options for small parts; integrated weighing in the pallet lift for continuous inventory.

Integration & software

• Indirect automation connection via transport carts (LoadMaster, LiftMaster, LiftMaster Linear, SheetMaster) or direct connection of loading/unloading units (LiftMaster Compact, LiftMaster Store, LiftMaster Store Linear) for minimum cycle times.
• Oseon production software provides inventory visibility, material flow management and integration with connected TRUMPF machines.

Technical data (comparison)
TruStore 3030 Compact vs TruStore 3040 Compact
Sheet size: 3048 mm × 1524 mm vs 4064 mm × 2032 mm
Stacking height: 90 mm vs 90 mm
Maximum loading per compartment: 3000 kg vs 5000 kg


Characteristics / technical specifications

• Product family: TruStore Series 3000 Compact
• Storage capacity mentioned on page: approx. 15–85 t (large and maxi format); alternative reference 18–75 t for unattended production depending on configuration
• Available sheet formats: large ~3000×1500 mm (TruStore 3030 Compact), maxi ~4000×2000 mm (TruStore 3040 Compact); comparison table shows 3048×1524 mm and 4064×2032 mm examples
• Stacking height per sheet: 90 mm
• Maximum loading per compartment: 3,000 kg (3030) / 5,000 kg (3040)
• Single-tower pallet counts: large format 6–13 pallets; maxi format 4–9 pallets (examples at 90 mm stacking)
• Expandable to double-tower: adds up to 12 (large) or 8 (maxi) additional pallets
• Pre-assembled low tower design to reduce floor load and installation time
• Compatibility: integrates with TRUMPF automation units and Oseon software; optional PartMaster and transport cart variants
