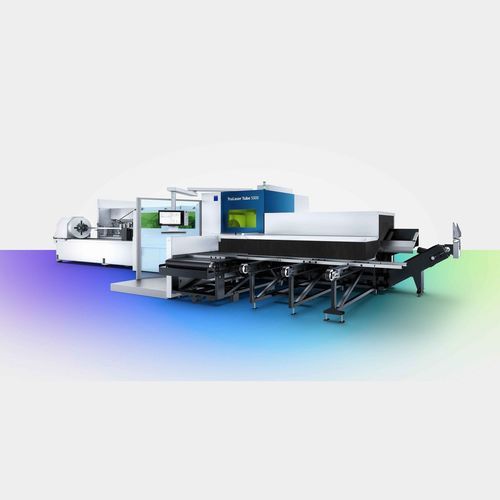

Automatic orbital tube-cutting machine TruLaser Tube 5000

laserprogrammableCNC

Overview
The TruLaser Tube 5000 is a laser tube cutting machine for round and profiled tubes up to 180 mm. It uses solid-state TruFiber lasers (TruFiber 4001 / 6001) and modular automation to deliver short cycle times and flexible production from single parts to series runs.

Key benefits

• Short part times via RapidCut and high feed rates of the solid-state laser
• Open machine concept for easy loading, unloading and maintenance access
• Self-centring collet chuck enabling clamping across the full range without retooling
• Synchronized laser parameters and TRUMPF cutting data for consistent cut quality
• Bevel cutting option up to 45° for welded constructions
• Advanced sensor systems for reliable process control
• Integration of subsequent operations (e.g. tapping) to reduce downstream steps
• Optional outer circle extension for increased clearance and flexibility

Features and options

• RapidCut – highest dynamics and reduced part times, especially on thin materials
• ScanLine – light-section sensors to measure and compensate raw material tolerances
• Self-centring collet chuck with continuous sensor monitoring for high part precision
• Bevel cutting option – high-quality bevels up to 45°
• Technology package for tapping – integrates flow drilling, tapping and spiral drilling (up to eight tools in standard adapter)
• Spatter Guard – applies release agent during production to prevent slag adhesion inside tubes
• FocusLine – automatic focal position control adapting to material
• PierceLine – controls and monitors piercing for accurate, fast piercing
• X-Blast cutting package – optimized nozzle geometry to reduce cutting gas consumption and improve process reliability
• Magnetic coupling with bellows to protect the cutting head in collisions
• Dot Matrix Code – standardised 2D industry code marking
• Automation and interfaces: LoadMaster Tube, tube storage system, conveyor tables, unloading and sorting interfaces
• Touchpoint HMI, Programming Tube and MobileControl app for intuitive operation and remote monitoring; OPC UA connectivity supported

Applications

• Furniture production – precise tube and profile cutting for welded and framed products
• Shop fitting and retail fixtures – flexible runs from prototypes to series
• Agricultural machinery – processing of thick-walled tubes for durable components
• Fitness equipment – automated production of tubular components
• Mechanical and apparatus engineering – combining tube and sheet techniques to optimize constructions

Technical data (excerpt)
Round tube – Maximum outside diameter: 152 mm
Round tube – Maximum outside diameter (optional): 170 mm
Rectangular profile – Max. side length / outer circle diameter: 152 mm / 170 mm
Rectangular profile – Max. side length / outer circle diameter (optional): 180 mm / 180 mm
Maximum raw material length for automatic loading (LoadMaster Tube 6.5 m): 6500 mm
Maximum raw material length for automatic loading (LoadMaster Tube 8.0 m): 8000 mm
Finished part length (unloading unit 3 m): 3000 mm
Finished part length (unloading unit 3 m + 1.5 m): 4500 mm
Finished part length (unloading unit 6.5 m): 6750 mm
Finished part length (unloading unit 6.5 m + 1.5 m): 8000 mm
Maximum path weight (standard/optional): 25 kg/m
Maximum raw material weight with LoadMaster Tube 6.5 m: 162.5 kg
Maximum raw material weight with LoadMaster Tube 8.0 m: 200 kg

Laser-specific data - TruFiber 4001: Maximum laser power: 4000 W
TruFiber 4001 – Max. material thickness, mild steel: 10 mm
TruFiber 4001 – Max. material thickness, stainless steel: 6 mm
TruFiber 4001 – Max. material thickness, aluminium: 6 mm
TruFiber 4001 – Max. material thickness, copper/brass: 5 mm
Laser-specific data - TruFiber 6001: Maximum laser power: 6000 W
TruFiber 6001 – Max. material thickness, mild steel: 14 mm / 10 mm (depending on variant)
TruFiber 6001 – Max. material thickness, stainless steel: 10 mm / 8 mm (depending on variant)
TruFiber 6001 – Max. material thickness, aluminium: 10 mm / 8 mm (depending on variant)
TruFiber 6001 – Max. material thickness, copper/brass: 5 mm

Technical specifications

• Brand: TRUMPF
• Model: TruLaser Tube 5000
• Max. round tube diameter (standard/optional): 152 mm / 170 mm
• Max. rectangular profile side (standard/optional): 152 mm / 180 mm (outer circle 170 mm / 180 mm)
• Max. raw material length for automation: 6500 mm / 8000 mm (LoadMaster variants)
• Max. finished part lengths (examples): 3000 mm / 4500 mm / 6750 mm / 8000 mm
• Maximum path weight: 25 kg/m
• Laser power options: TruFiber 4001 = 4000 W; TruFiber 6001 = 6000 W
• Bevel cuts: up to 45° (option)
• Integrated options: RapidCut, ScanLine, SeamLine Tube, FocusLine, PierceLine, Tapping package, Spatter Guard, X-Blast
• Automation compatibility: LoadMaster Tube, tube storage system, conveyor tables, unloading automation interface
• User interface / software: Touchpoint HMI, Programming Tube, MobileControl app; connectivity via OPC UA
