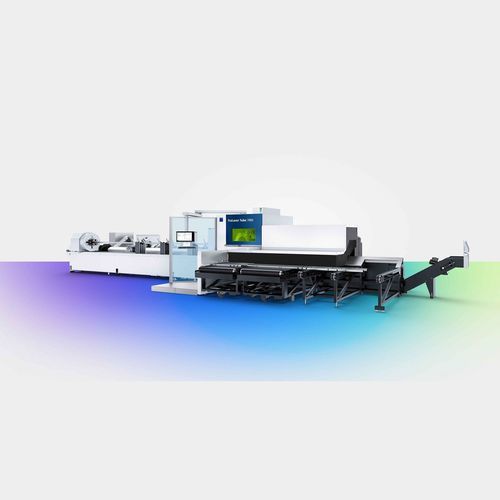

Tube cutting machine TruLaser Tube 7000

fiber laserfor aluminumfor stainless steel

Overview
The TruLaser Tube 7000 is an industrial laser tube cutting machine for large tubes and profiles. It processes round tubes up to 273 mm outside diameter, rectangular profiles with an outer circle up to 290 mm and square tubes up to 203 x 203 mm. Available laser options (TruFiber 6001 / 9001) and automation modules support high-throughput production and mixed batch operation while reducing manual inspection.

Key benefits

• Large processing range: round, rectangular and square tubes with extended outer circle for flexible part design.
• Reduced part cost and higher throughput with RapidCut, high machine dynamics and up to 9 kW laser power.
• Accurate bevel and angle cutting up to 45° enabled by precision clamping and automatic step rollers.
• Suitable for small lots and single-piece production: short setup and TRUMPF cutting data ensure consistent quality.
• High availability: Condition Monitoring supports predictive maintenance to minimise unplanned downtime.
• Integrated follow-up operations (flow drilling, tapping, twist drilling) reduce handling and secondary operations.

Sensor and quality systems

• ScanLine: light-section sensors measure and compensate raw material tolerances for precise cuts.
• Quality Pilot: assesses raw material and controls ScanLine measurement frequency to avoid unnecessary cycles.
• ObserveLine Comfort: automatically checks whether slugs have fallen out of cut contours to increase process safety.
• ObserveLine Edge: detects contours of pre-punched profiles and adapts cutting programs for reliable processing.
• SeamLine Tube: automatic weld seam detection and alignment with parameter adaptation around seams.

Machine concept and accessibility
The open machine concept with intelligent beam protection (laser class 1) provides ergonomic access for manual, semi-automatic or crane loading. Self-centring clamping and magnetic-coupled cutting unit protect part quality and allow quick recovery after collisions.

Automation and material handling
LoadMaster Tube variants (6.5 m / 9.2 m / 12.5 m) enable automatic loading of raw material up to 12.5 m. Conveyor systems, unloading/sorting units and tube storage solutions support unattended production and flexible line integration.

Digitalisation & software
Programming Tube (3D NC programming), Oseon production management, Smart View and OPC UA interfaces enable NC programming, monitoring and integration into higher-level IT systems.

Technical data (selected)
Round tube — Max. outside diameter: 273 mm
Rectangular profile — Max. side / outer circle: 254 mm / 290 mm
Automatic loading lengths — LoadMaster Tube: 6.5 m = 6500 mm; 9.2 m = 9200 mm; 12.5 m = 12500 mm
Finished part lengths (examples) — up to 12500 mm depending on unloading unit
Max. path weight: 40 kg/m
Max. raw material weight (LoadMaster): 260–370 kg depending on variant

Laser data — TruFiber 6001: max. power 6000 W; typical material thickness examples: mild steel up to 14 mm; stainless steel up to 10 mm; aluminium up to 10 mm; copper/brass up to 5 mm; average consumption 12 kW
Laser data — TruFiber 9001: max. power 9000 W; typical material thickness examples: mild steel up to 14 mm; stainless steel up to 12.5 mm; aluminium up to 12.5 mm; copper/brass up to 5 mm; average consumption 14 kW

Specifications

• Model: TruLaser Tube 7000
• Brand: TRUMPF
• Processing range: round tubes up to Ø 273 mm; rectangular up to 254 mm side / 290 mm outer circle; square up to 203 x 203 mm
• Automatic loading: LoadMaster Tube (6.5 m / 9.2 m / 12.5 m)
• Key features: ScanLine, Quality Pilot, ObserveLine Comfort, ObserveLine Edge, SeamLine Tube, RapidCut, bevel cutting to 45°, integrated tapping/drilling, Spatter Guard option
