Overview

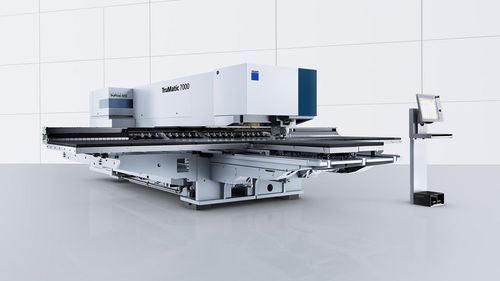

The TRUMPF TruMatic 7000 is a high‑productivity punch‑laser combined machine that integrates electro‑hydraulic punching with CO2 laser cutting (TruFlow 4000) to deliver precise edges, flexible forming and high throughput. Available in large and medium formats and fully automatable with SheetMaster and ToolMaster for process‑reliable loading, unloading and sorting.

Key benefits

• Active die for scratch‑free punching and new forming options with a forming stroke from below.
• High edge quality and precision cutting with the TruFlow 4000 CO2 laser (max. 4000 W).
• Additional laser axes to increase productivity and improve material yield.
• Automatic nozzle changer for fast nozzle replacement in automated runs.
• Sensor‑protected part‑removal flaps for safe, process‑reliable evacuation of parts.
• Productive automation: SheetMaster, ToolMaster, SortMaster and GripMaster support multi‑shift operation and reduce handling time.
• Combination of punching and laser reduces downstream finishing and enables complex part production in one setup.

Applications
The TruMatic 7000 processes delicate contours, filigree parts and larger housings. Typical operations include punching, embossing, tapping/roll‑forming, chamfering of laser edges, MultiBend and combinations that often eliminate secondary operations. Suited for component series requiring high precision and mixed manufacturing workflows.

Technical data (summary)
Formats: large / medium. Dimensions (W x D x H): 10190 mm x 8898 mm x 2328 mm (large) | 10190 mm x 8450 mm x 2328 mm (medium). Punching stroke rate (E = 1 mm): up to 1200 1/min. Marking rate: up to 3000 1/min. Working range (large punching/laser X x Y): 3050 x 1550 mm (medium: 2500 x 1250 mm). Combined operation X x Y: 2500 x 1550 mm (medium Y 1250 mm). Max sheet thickness: steel/stainless 8 mm, aluminium 6 mm. Max workpiece weight: 280 kg (large) / 200 kg (medium). Max punching force: 220 kN. MultiTool change time: 0.3 s. Tool positions example: up to 21 tools / 4 clamps (large). Laser: TruFlow 4000, max 4000 W. Part removal flap max size: 500 x 500 mm. Average production power (TruFlow 4000): 28.5 kW; auto‑shutdown: 1.5 kW.

Equipment & Options (selected)

• Active die (scratch‑free punching and forming)
• Ball tables or brush tables for sensitive materials
• Automatic nozzle changer
• Smart functions: Smart Load, Smart Unload, Smart Punch Monitoring
• Connectivity and software: TruTops Boost, Oseon, OPC UA interfaces
• Integrated flattening and cluster tools
• Automation: SheetMaster (loading/unloading/sorting), ToolMaster (tool magazine), SortMaster Box, GripMaster, cart systems

Characteristics / specifications

• Model: TruMatic 7000 (large and medium formats)
• Brand: TRUMPF
• Laser source: TruFlow 4000 (CO2), max. 4000 W
• Max sheet thickness: steel 8 mm, stainless 8 mm, aluminium 6 mm
• Max punching force: 220 kN
• Punching stroke rate (E = 1 mm): up to 1200 1/min
• Marking stroke rate: up to 3000 1/min
• Working range (large punching/laser): X up to 3050 mm, Y up to 1550 mm
• Combined operation working range: X up to 2500 mm, Y up to 1550 mm
• MultiTool change time: 0.3 s
• Example tool positions: up to 21 tools and 4 clamps (large)
• Average power input in production (TruFlow 4000): 28.5 kW
• Auto‑shutdown power consumption: 1.5 kW
• Part removal flap max: 500 x 500 mm
