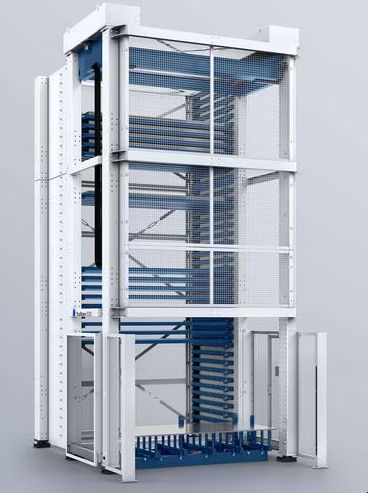

Plate storage tower TruStore 30 series

for flat productsmodularfor sheet metal

Overview
Modular tower storage system for sheet material handling. The TruStore Series 3000 reduces floor space and can be expanded stepwise to form fully automated cutting and bending cells. Choose tower height from multiple selectable levels and configure compartment heights to 90 mm, 170 mm or 260 mm. The system connects to TRUMPF 2D laser cutting machines, punching machines, punch‑laser combinations and bending machines.

Key benefits

• Increased machine uptime and optimised material flow for improved time and cost efficiency.
• Space saving — up to 85% reduction in installation area compared with conventional storage.
• Modular expansion — add towers, carts or automation modules as production requirements grow.
• High storage capacity — scalable capacity up to about 210 tonnes depending on configuration; single or double tower options.
• Production control with Oseon — transparent inventory and material‑flow data for centralized management.

Representative technical comparison
Compare selected versions:
TruStore 3030 | TruStore 3040
Sheet size: 3048 x 1524 mm | 4064 x 2032 mm
Stack heights: 90 mm / 170 mm / 260 mm | 90 mm / 170 mm / 260 mm
Maximum loading per compartment: 3000 kg | 5000 kg

System concepts and equipment

• Single tower with pallet lift: configurable tower heights (examples from ~3.4 m to ~8.4 m) and pallet counts per configuration.
• Double tower: increase pallet capacity by adding a second tower.
• Input/output options: infeed/outfeed station under the pallet lift, input/output carts (with or without lift table) and longitudinal or front access configurations.
• Automation integration: indirect connection via transport carts (LoadMaster, LiftMaster, SheetMaster, BendMaster etc.) or direct connections at the tower; supports single and dual carts and customised traverse paths.
• Processing cells: connect multiple machines for cutting, punching/laser and bending, with optional PartMaster conveyor for parts sorting.

Additional features

• Adjustable compartment heights (90 / 170 / 260 mm) for pallets or auxiliary supports.
• Optional weighing device in the pallet lift for continuous inventory tracking.
• Unpacking table option for separating material from wooden pallets.
• Various loading/unloading station configurations and foldable supports for automated or manual access.

Technical specifications

• Series name: TruStore Series 3000
• Available formats (examples): TruStore 3030 (3048 x 1524 mm), TruStore 3040 (4064 x 2032 mm)
• Storage compartment heights: 90 mm, 170 mm, 260 mm
• Maximum loading per compartment (examples): 3030 = 3000 kg, 3040 = 5000 kg
• Tower height configurations: from approx. 3.4 m to approx. 8.4 m (multiple selectable levels)
• Storage capacity examples: up to about 210 tonnes in large format (system dependent)
• Expandable modular concept: compatible with TRUMPF machines and automation modules (LoadMaster, LiftMaster, SheetMaster, PartMaster, BendMaster)
• Software: Oseon for material‑flow and inventory management
