Loading and unloading system LiftMaster Store series

Overview

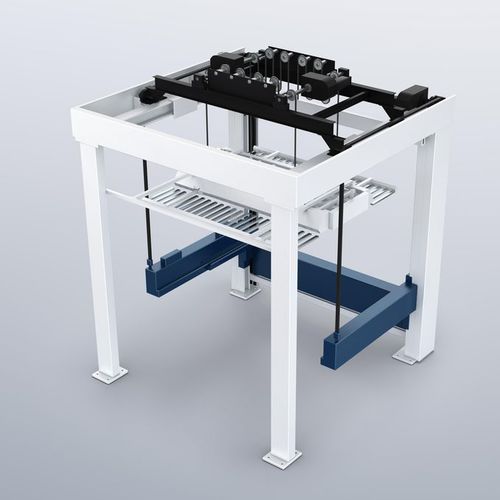

The portal frame solution LiftMaster Store connects directly to the storage system, requires minimal floor space and enables flexible production layout. It integrates TRUMPF technologies such as a suction frame with unloading rake for automated handling, a synchronous loader to shorten cycles, and an independent pallet-picker crane for fast pallet access. The LiftMaster Store Linear supports connection of up to three machines and is optimized for automated scrap-skeleton separation.

Key features

• Direct store access via pallet-picker crane for fast pallet retrieval.
• Quick upgrade to a processing cell with TruStore and SortMaster integration.
• Fast process cycles: complete load/unload cycle including pallet change in approx. 100 seconds with the synchronous loader.
• Scrap-skeleton separation: enables single-stroke production and sub-minute sheet throughput in optimized configurations.
• Multi-machine operation: LiftMaster Store Linear can load/unload up to three machines managed by TruTops FMC.

Equipment / Options

• Scrap-skeleton separation: suction frame with spreadable grippers for separating scrap from finished parts (option for LiftMaster Store 1530).
• Suction frame / unloading rake: individually controllable suction cups pick raw sheets and place finished sheets in the unloading area.
• SortMaster: automated single-part removal and sorting into containers or onto pallets/carts.
• Multiple-machine connection (LiftMaster Store Linear): simultaneous load/unload of up to three machines, coordinated via TruTops FMC.
• Synchronous loader: transfers finished-part pallet between raw material table and pallet changer for synchronized handling.
• Auxiliary pallets: support automated loading and unloading handling.

Technical data (summary table)
LiftMaster Store large format | LiftMaster Store maxi format
Loading
Maximum sheet size: 3000 mm x 1500 mm | 4000 mm x 2000 mm
Minimum sheet size: 1000 mm x 1000 mm | 1000 mm x 1000 mm
Maximum sheet thickness (loading): 30 mm | 30 mm
Maximum sheet weight (loading): 1100 kg | 1900 kg
Unloading
Maximum sheet size: 3000 mm x 1500 mm | 4000 mm x 2000 mm
Minimum sheet size (unloading): 150 mm x 150 mm | 150 mm x 150 mm
Maximum sheet thickness (unloading): 30 mm | 30 mm
Max. sheet thickness (belt prongs): 15 mm | 15 mm
Maximum sheet weight (unloading): 1100 kg | 1600 kg

Applications / Benefits
The LiftMaster Store enables compact direct-store integration, fast cycle times, efficient scrap-skeleton separation and the option to serve multiple processing machines for highly automated 2D laser cutting production.
