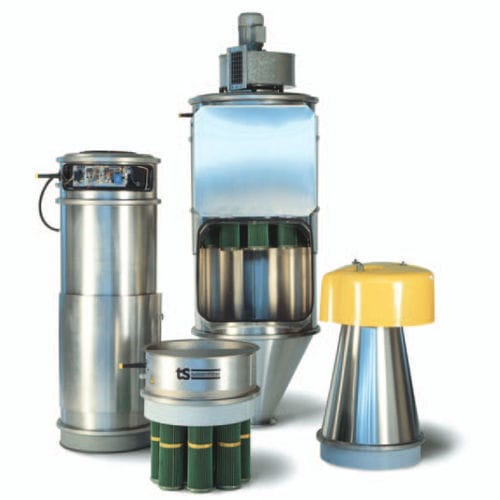

The product filter apparatus [series 50] is especially suitable to suction clean working places and machines where the separated product is returned into the process or collected.
permissible in the food branch
integrable in existing systems
corrosion resistance
material: seawater proof aluminium
mounting:
series 02 – via flange
series 03 – via welding ring (EZ)
series 05/07/10 – fastened with screws on the housing
rotable up to 360°
regeneration C: fully automatic regeneration with compressed air »on-line-operation« [time control]
jet module with valve box, valves and electronic control
3 filter elements will be regenerated by 1 compressed air impulse
temperatures up to 60 ºC
from 5000 Pa (500 mmWG) underpressure up to 5000 Pa (500 mmWG) overpressure
power supply: 230 V AC, 40-60 Hz, 10 W
compressed air supply: 3 up to 6 bar, oil and water-free
hose connection: nominal width 13 mm
