USB interface module Certifier™

with screen

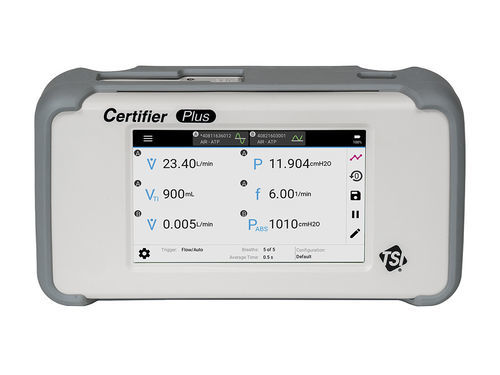

The Certifier™ Plus Interface Module connects to and powers the Certifier™ Plus High Flow and Low Flow Modules. The touchscreen display on the interface module is used to control the Certifier™ Plus Test System and display measurement readings and breath waveforms in graphical form. The Certifier™ Plus Flow Analyzer system can be used to test mechanical ventilators, anesthesia delivery machines, air oxygen blenders, medical insufflators, oxygen concentrators, and more. The Certifier™ Plus Interface Module 4089 is one half of the Certifier™ Plus Test System 4080-S and is used in conjunction with the Certifier™ Plus High Flow Module 4081 and Certifier™ Low Flow Module 4082. The Certifier™ Plus Interface Module 4089 replaces the previous Certifier™ Interface Module 4088. - 4089 Kit Includes: - Certifier™ Plus Interface Module 4089 - Protective cover - Cable, flow module - Power supply 100/240 VAC to +12 VDC, 2.1 mm plug - Plug set with NA, UK, EU, CN, and SAA connectors - Battery, Lithium-Ion, 7.2V 6.4 AHr (pre-installed at factory) - Hybrid carrying case (13.8 x 9.5 x 8.1 inches) - 4089 Interface Module: - Durable design - includes 2 year standard warranty - 5-inch, color touchscreen (capacitive) - 2 flow module connectors - AC adapter 12 VDC, 3M minimum - Up to 8 hours continuous battery operation - User configurations - Log data and take screenshots - Export via USB-A port - USB communications interface - Dimensions 20.5 x 10.6 x 7.3 cm - Weight 0.85 kg - Product type: Display Interface Module for Certifier™ Plus Test System - Compatible with: Certifier™ Plus High Flow Module 4081, Certifier™ Low Flow Module 4082 - Display: 5-inch color touchscreen - Power: 100/240 VAC to +12 VDC, Lithium-Ion battery (7.2V 6.4 AHr) - Battery life: Up to 8 hours - Connectivity: USB-A port, USB communications interface - Dimensions: 20.5 x 10.6 x 7.3 cm - Weight: 0.85 kg - Warranty: 2 years standard
