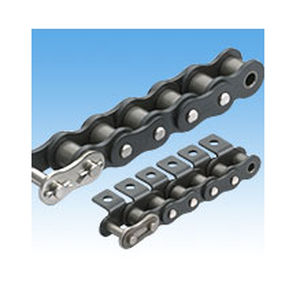

Steel conveyor chain RS-LMC series

attachmentfor the food industrysmall-size

RS Attachment Chains use special oil-impregnated bush ensuring a long life even lube-free. RS Attachment Chains are transport chains with attachments attached to the plates of RS roller chain (for power transmission). We have reviewed the material and processing method of special oil-impregnated bush and improved the lubricant. Features and Structure - By using special oil-impregnated bush, it can be used for long periods of time Lube-free. - The inner and outer plates are each blackened to give them some corrosion resistance and a luxurious appearance. - The chain pitch is small, so small items can be transported at small intervals, making it generally suitable for short-distance transport. - Compatible with RS Attachment Chains. ・Operating temperature range: -10℃ to 150℃ *Dimensions differ from those of drive Lambda Chain. Improved lubricant for special oil-impregnated bush, suitable for use in food machinery special oil-impregnated bush are lubricated with NSF H1 compliant lubricant, so they can also be used in food processing machinery. Please be aware that NSF H1 non-compliant rust prevention oil and assembly oil are also attached in the process of manufacturing. NSF is an organization that certifies the safety of lubricants for food processing machinery. NSF H1 is a standard established by NSF that states, "Lubricants can be used in areas where accidental contact with food may occur." It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications. Use standard steel RS sprockets with RS chains with lambda attachments.
