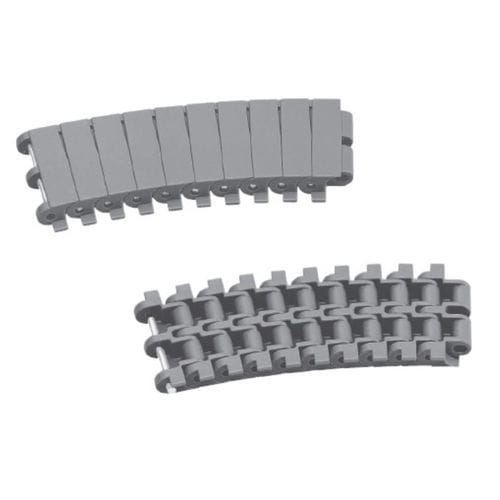

Plastic conveyor chain RSP60-CU-2

blockslattedfor heavy loads

RSP60-2 curved conveyor type This is Plastic block chain that can be used on curved conveyors. Features - The curved type RSP60-2 is ideal for transporting wide items. - With a larger allowable tension (approximately 1.3 times) than the RSP60-CU type, it is ideal for conditions with higher loads. - Comes with float-preventive tabs to prevent the chain from floating up on curved sections of the conveyor. Note: Plastic pin type cannot be manufactured. About one-piece sprockets This is an integrated sprocket exclusively for the RSP-2/RSP-CU-2 models. Note) (JIS standard) RS60-2 row sprockets cannot be used. About the two-piece type Use two RS60B type (machined) sprockets together. Adjust the width by adding distance between the sprockets. Note 1. For inquiries about sprockets, please contact Sprocket CS. 2. RS60-2 row sprockets cannot be used. 3.Make sure the teeth of the two sprockets are aligned. 4. Use a sprocket with 12 teeth or more. 5. If you order it as a set with a sprocket, the distance will be made as a special order item. We can also manufacture sprocket and distance integrated types. Applications Below are the industries we recommend: It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc. Purpose ■Transportation of small items and pallets
